599-07335 | 599-07335 2.5 PICV ANSI 250 | Siemens
Pressure Independent Control Valve, 2-1/2 inch, ANSI 250, 132 GPM maximum flow (field adjustable as low as 21 GPM), w/ 3 P/T ports

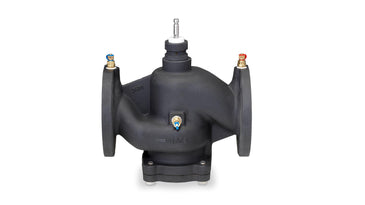

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-07335
Documents and manuals
Siemens 599-07335 Documents
Datasheet(Pressure Independent Control Series 2-Way Flanged Valves and Electromotoric Valve Actuators Specification Sheet)Datasheet(Pressure Independent Control Series. Two-Way Cast Iron Flanged Bodies. ANSI 125 and 250 Technical Instructions)Declarations and Certificates(Control valve with flanged connections) More Info
Overview
Details for 599-07335
599-07335 2.5 PICV ANSI 250
Pressure Independent Control Valve, 2-1/2 inch, ANSI 250, 132 GPM maximum flow (field adjustable as low as 21 GPM), w/ 3 P/T ports
Specifications
- Valve Size
- 2.5 in
- Port Configuration
- 2-Way Normally open
- End Connection
- Flanged
- Material, valve body
- Cast Iron
- Trim Material
- Brass
- Material, inside set
- Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 132 gpm
- Min GPM
- 21 gpm
- Preset GPM
- 132 gpm
- Pressure Class
- ANSI 250
- Leakage rate
- Class IV (0.01% of Cv)
- Max. Differential Pressure, Liquid
- 90 psi
- Medium temperature
- 34…250 ºF
- Stroke
- 3/4 in., 20 mm
- Close-off Pressure
- 100 psi
- Dimensions (W x H x D)
- 11.5 x 8.37 x 7.48 in
