238-07335 | 238-07335 2.5 PICV ANSI 250 NO SR | Siemens

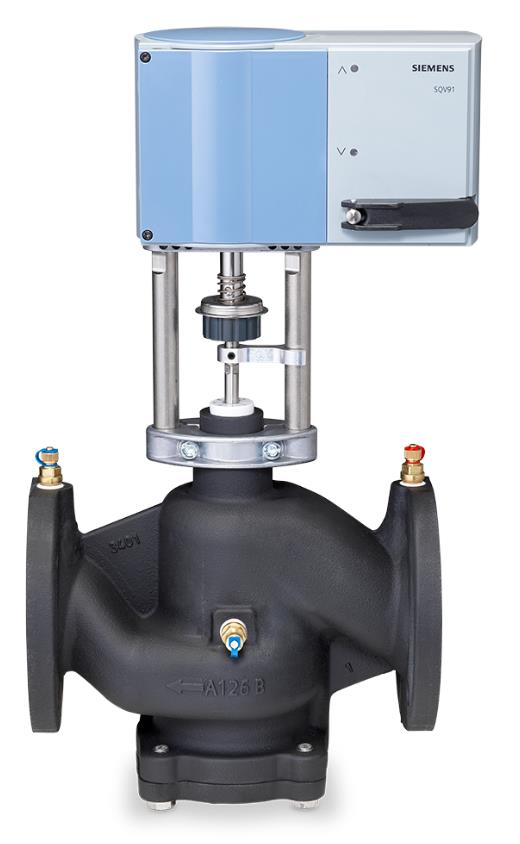

Pressure Independent Control Valve, 2-1/2 inch, ANSI 250, 132 GPM maximum flow (field adjustable), w/ 3 P/T ports, with 24 Vac Electronic SQV Spring Return Actuator, 3P (floating), 0-10V or 4-20mA, Fail Open
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 238-07335
Documents and manuals
Siemens 238-07335 Documents
Datasheet(Pressure Independent Control Series 2-Way Flanged Valves and Electromotoric Valve Actuators Specification Sheet)Datasheet(SQV Series Electronic Valve Actuators (For Use with 2-1/2-Inch to 6-Inch Pressure Independent Control Valves). Technical Instructions)Datasheet(Pressure Independent Control Series. Two-Way Cast Iron Flanged Bodies. ANSI 125 and 250 Technical Instructions)Installation instruction(SQV Series Electronic Valve Actuators Installation Instructions)Datasheet for Actuator(Pressure Independent Control Series 2-Way Flanged Valves and Electromotoric Valve Actuators Specification Sheet) Installation Instructions More Info
Overview
Details for 238-07335
238-07335 2.5 PICV ANSI 250 NO SR
Pressure Independent Control Valve, 2-1/2 inch, ANSI 250, 132 GPM maximum flow (field adjustable), w/ 3 P/T ports, with 24 Vac Electronic SQV Spring Return Actuator, 3P (floating), 0-10V or 4-20mA, Fail Open
Specifications
- Valve Size
- 2.5 in
- Port Configuration
- 2-Way Normally open
- End Connection
- Flanged
- Material, valve body
- Cast Iron
- Trim Material
- Brass
- Material, inside set
- Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 132 gpm
- Min GPM
- 21 gpm
- Preset GPM
- 132 gpm
- Pressure Class
- ANSI 250
- Leakage rate
- Class IV (0.01% of Cv)
- Max. Inlet Pressure (absolute), Liquid
- 200 psi
- Max. Differential Pressure, Liquid
- 90 psi
- Medium temperature
- 34…250 ºF
- Stroke
- 3/4 in., 20 mm
- Close-off Pressure
- 100 psi
- Valve Actuator Type
- Electronic
- Actuation Style
- Linear
- Control Signal
- Floating control , 0...10 V
- Fail Safe
- Yes
- Supply Voltage
- 24 VAC/DC
- Positioning time
- 40 s
- Power consumption
- 20 VA
- Positioning signal
- 3-position, 0...10 V DC, 4…20 mA
- Dimensions (W x H x D)
- 11.5 x 23.35 x 7.48 in
