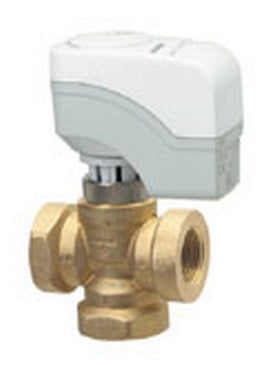

248-00234 | Zone valve, 3-way, 1/2", 4.0 Cv, NPT w/ 24Vac, SSP61U actuator, 0-10Vdc, NSR | Siemens
Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.50-inch; Flow rate 4.0 Cv; SSP61U 0-10Vdc, non-spring return actuator, 24Vac, AB-A normally open

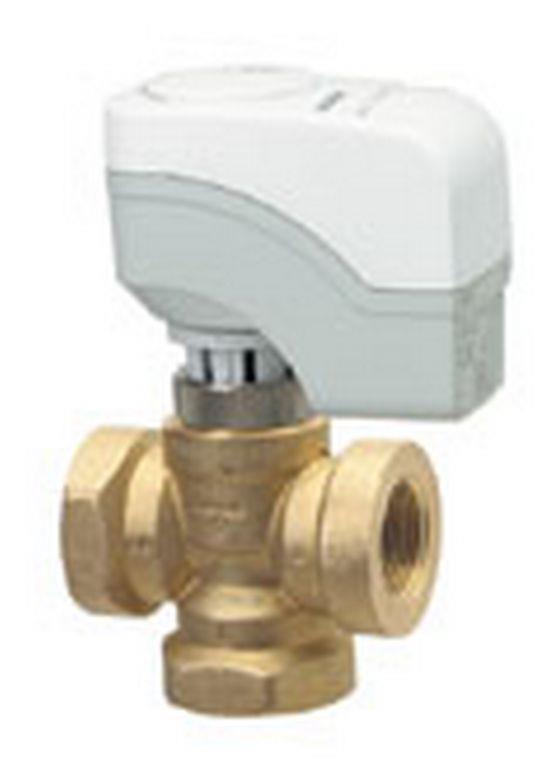

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 248-00234
Documents and manuals
Siemens 248-00234 Documents
Datasheet(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators)Datasheet(599 Series Zone Valve. Electric Actuator Assembly Selection Technical Bulletin)Datasheet(599 Series Zone Valve Bodies: Two-Way and Three-Way Technical Instructions)Datasheet(Electromotoric actuator. SSE161.05U. SSF161.05U)Mounting instruction(Electromotoric actuator. SSB161.05U. SSE161.05U. SSF161.05U)Datasheet for Valve(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators)Datasheet for Actuator(Electromotoric actuator. SSE161.05U. SSF161.05U) Installation Instructions More Info
Overview
Details for 248-00234
Zone valve, 3-way, 1/2", 4.0 Cv, NPT w/ 24Vac, SSP61U actuator, 0-10Vdc, NSR
Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.50-inch; Flow rate 4.0 Cv; SSP61U 0-10Vdc, non-spring return actuator, 24Vac, normally openSpecifications
- Valve Type
- Three-way
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 3-Way Diverting
- End Connection
- NPT
- Material, valve body
- Brass
- Material, inside set
- Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- Leakage rate
- ANSI Class III
- Medium temperature
- 34…230 ºF
- Stroke
- 1/10 in
- Valve Actuator Type
- Electronic
- Supply Voltage
- 24 VAC
- Positioning time
- 34 s
- Power consumption
- 2.5 VA
