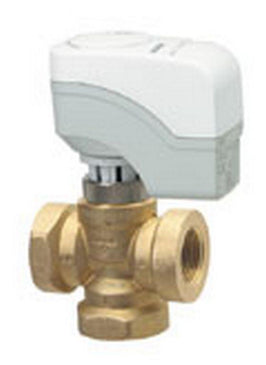

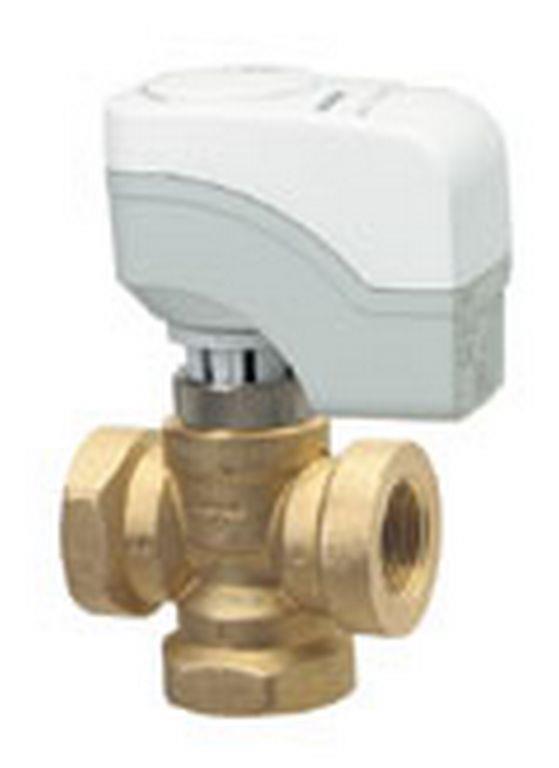

244-00232 | Zone valve, 3-way, 3/4", 4.1 Cv, NPT w/ 24V floating NSR actuator | Siemens
Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.75-inch; Flow rate 4.1 Cv; SSA81U 3-position, non-spring return actuator, 24V, AB-A normally closed.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 244-00232
Documents and manuals
Siemens 244-00232 Documents
Datasheet(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators)Datasheet(599 Series Zone Valve. Electric Actuator Assembly Selection Technical Bulletin)Datasheet(599 Series Zone Valve Bodies: Two-Way and Three-Way Technical Instructions)Datasheet(599 Series Zone Valve SSA Series 24 Vac Electronic Valve Actuator: Floating or 0 to 10 Vdc Control Fail-in-Place Technical Instructions)Installation instruction(599 Series Zone Valves SSA Electronic Valve Actuator 24 Vac Floating or 0 to 10V Control Fail-in-Place Installation Instructions)Datasheet for Valve(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators)Datasheet for Actuator(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators) Installation Instructions More Info
Overview
Details for 244-00232
Zone valve, 3-way, 3/4", 4.1 Cv, NPT w/ 24V floating NSR actuator
Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.75-inch; Flow rate 4.1 Cv; SSA81U 3-position, non-spring return actuator, 24V, AB-A closed in zero position.Specifications
- Valve Type
- Three-way
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 3-Way Diverting
- End Connection
- NPT
- Material, valve body
- Brass
- Material, inside set
- Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- Leakage rate
- ANSI Class III
- Medium temperature
- 34…230 ºF
- Stroke
- 1/10 in
- Valve Actuator Type
- Electronic
- Supply Voltage
- 24 VAC
- Positioning time
- 150 s
- Power consumption
- 0.8 VA
