241-00230 | Zone valve, 3-way, 1/2", 1.0 Cv, NPT w/ 115V 2-pos SR actuator, fails AB-A | Siemens

Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.50-inch; Flow rate 1.0 Cv; SFP11U 2-position, spring return actuator; 120Vac; fails AB-A open.

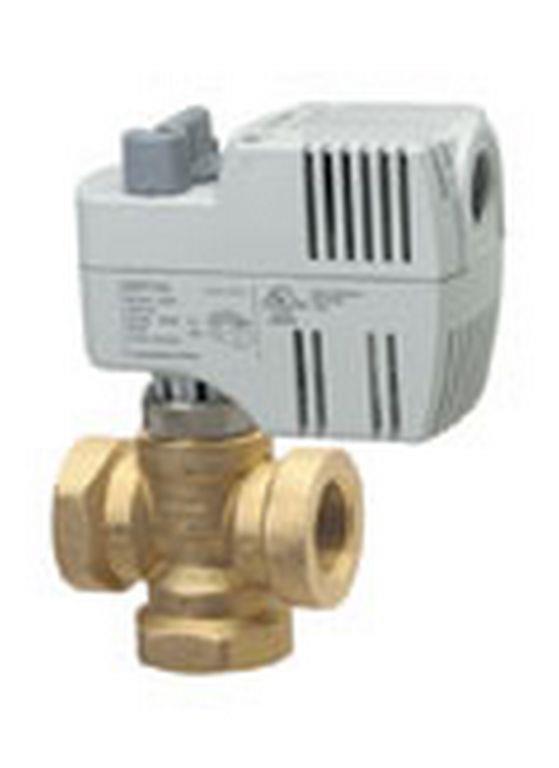

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 241-00230

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 241-00230 Documents

Datasheet(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators)Datasheet(599 Series Zone Valve. Electric Actuator Assembly Selection Technical Bulletin)Datasheet(599 Series Zone Valve Bodies: Two-Way and Three-Way Technical Instructions)Datasheet(599 Series Zone Valve SF Series Electronic Valve Actuator. 2-position Control Technical Instructions)Installation instruction(599 Series Zone Valves SFA / SFP Electronic Valve Actuator 2-Position Control Installation Instructions)Datasheet for Valve(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators)Datasheet for Actuator(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators) Installation Instructions More Info

Overview

Details for 241-00230

Zone valve, 3-way, 1/2", 1.0 Cv, NPT w/ 115V 2-pos SR actuator, fails AB-A

Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.50-inch; Flow rate 1.0 Cv; SFA11U 2-position, spring return actuator; 115 Vac; fails AB-A.

Specifications

Valve Type: Three-way
Valve Body Style: Stroke-Globe
Port Configuration: 3-Way Diverting
End Connection: NPT
Material, valve body: Brass
Material, inside set: Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
Leakage rate: ANSI Class III
Medium temperature: 34…230 ºF
Stroke: 1/10 in
Valve Actuator Type: Electronic
Supply Voltage: 120 VAC
Positioning time: 10 s
Power consumption: 9.8 VA
