230-04322-5.5 | 230-04322-5.5, 3/4 PICV, 5.5 GPM + 3P NSR NO | Siemens

3/4-PICV, 5.5 GPM + 3P NSR NO

Siemens | 230-04322-5.5

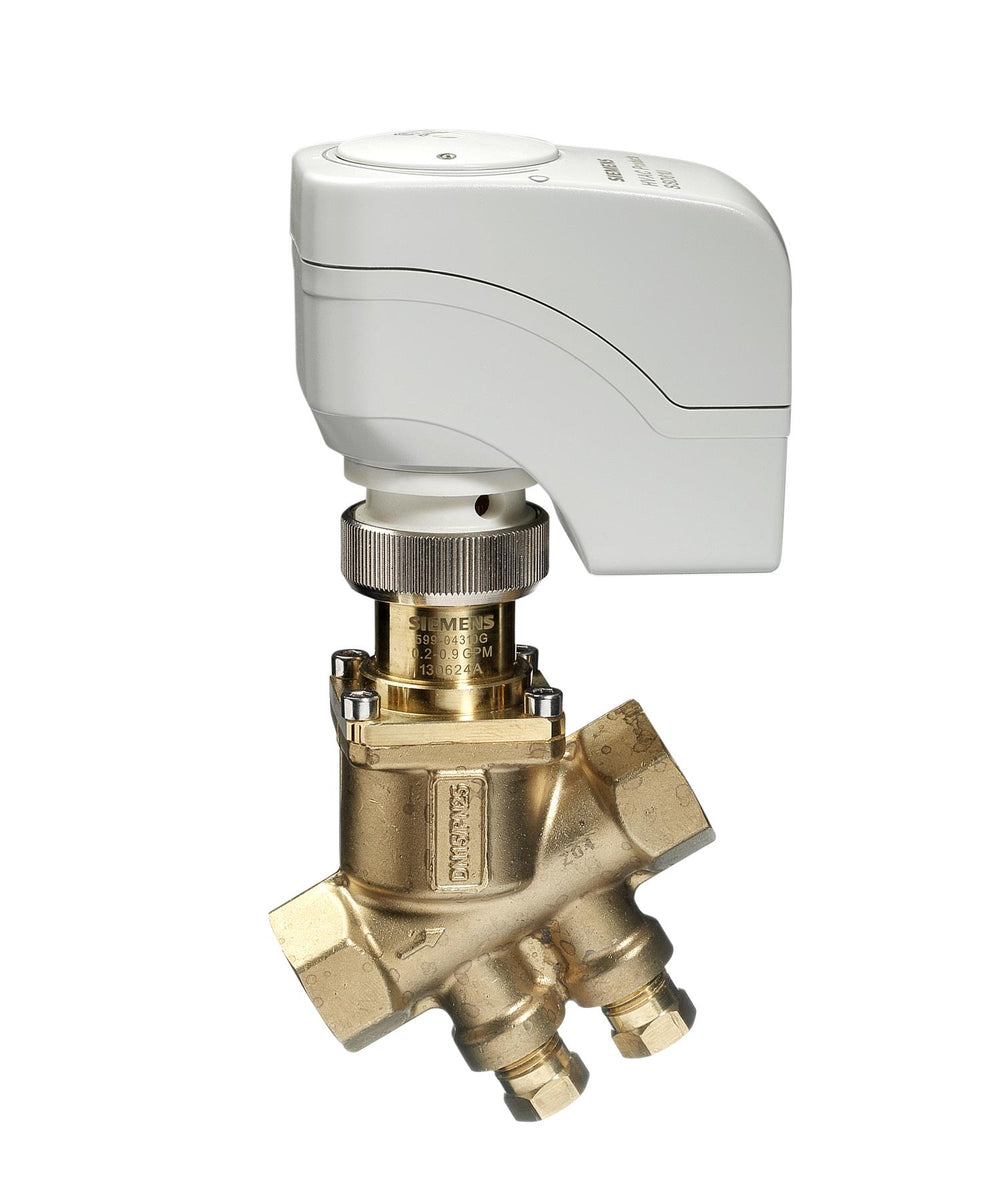

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 230-04322-5.5
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens 230-04322-5.5 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions)Datasheet(Pressure Independent Control SSD Series Electronic Valve Actuators)Installation instruction(SSD Series Electronic Valve Actuator Installation Instructions)Datasheet for Actuator(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet) Installation Instructions More Info

Overview

Details for 230-04322-5.5

230-04322-5.5, 3/4 PICV, 5.5 GPM + 3P NSR NO

3/4-PICV, 5.5 GPM + 3P NSR NO

Specifications

Valve Size
0.75 in
Valve Type
Two-way
Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally open
End Connection
NPT
Material, valve body
Brass
Trim Material
Brass
Material, inside set
Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
Flow Characteristic
Linear
Medium
Water , Water with anti-freeze
Max GPM
8 gpm
Min GPM
1.3 gpm
Preset GPM
5.5 gpm
Pressure Class
ANSI 250
Leakage rate
ANSI Class IV (0.01%) @ 100 psi
Rangeability
≥ 100:1
Max. Inlet Pressure (absolute), Liquid
400 psi
Max. Differential Pressure, Liquid
58 psi
Medium temperature
34…248 ºF
Stroke
5.5 mm
Close-off Pressure
100 psi
Valve Actuator Type
Electronic
Actuation Style
Linear
Normally Open/Normally Closed
Normally Open
Control Signal
Floating control
Fail Safe
No
Supply Voltage
24 VAC
Positioning time
150 s
Power consumption
0.8 VA
