172M-10326S | 2W 1-1/2", 160Cv ball valve assy, stainless steel ball and stem, 2-pos, NC, SR | Siemens

This 599 Series 2-way ball valve with a 120V, 2-position control, normally closed, fail safe actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-1/2-inch valve is 160 Cv, full-port valve without flow characterizer insert, with stainless steel ball and stem, and an operating handle that can manually operate the valve in the event of power failure.

Siemens | 172M-10326S

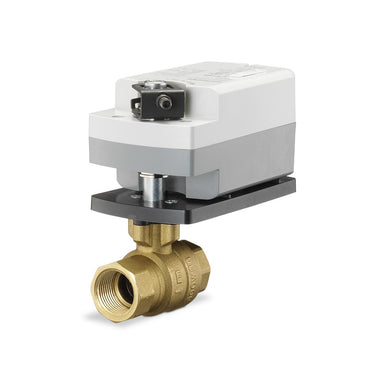

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 172M-10326S

Overview

Details for 172M-10326S

2W 1-1/2", 160Cv ball valve assy, stainless steel ball and stem, 2-pos, NC, SR

This 599 Series 2-way ball valve with a 120V, 2-position control, normally closed, fail safe actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-1/2-inch valve is 160 Cv, full port, with stainless steel ball and stem, and an operating handle that can manually operate the valve in the event of power failure.

Specifications

Valve Type
Two-way
Valve Body Style
Rotary-Ball
Port Configuration
2-Way Normally closed
End Connection
NPT
Material, valve body
Brass
Material, inside set
Ball: Stainless Steel , Ball Seals: Glass filled PTFE with EPDM O-rings , Stem: Stainless Steel , Stem Seals: EPDM O-rings
Medium
Water , Water with anti-freeze
Leakage rate
ANSI Class IV
Leakage rate, class
ANSI Class IV
Medium temperature
35…250 ºF
Valve Actuator Type
Electronic
Actuation Style
Rotary
Normally Open/Normally Closed
Normally Closed
Supply Voltage
120 VAC
Auxiliary Switch
No
Dimensions (W x H x D)
3.94 x 8.75 x 9.25 in
