171G-10369S | 599 Series 3W, 1-1/2", 63Cv Stainless Steel Ball Valve, Prop, SR | Siemens

This 599 Series 3-way ball valve with a spring return Proportional (0-10V) actuator assembly, providing 200 PSI close-off, is used to control hot or chilled water and up to 50% glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-1/2-inch valve is 63 Cv, full-port valve without flow characterizer insert, with stainless steel ball and stem, includes an operating handle that can manually operate valve in the event of power failure.

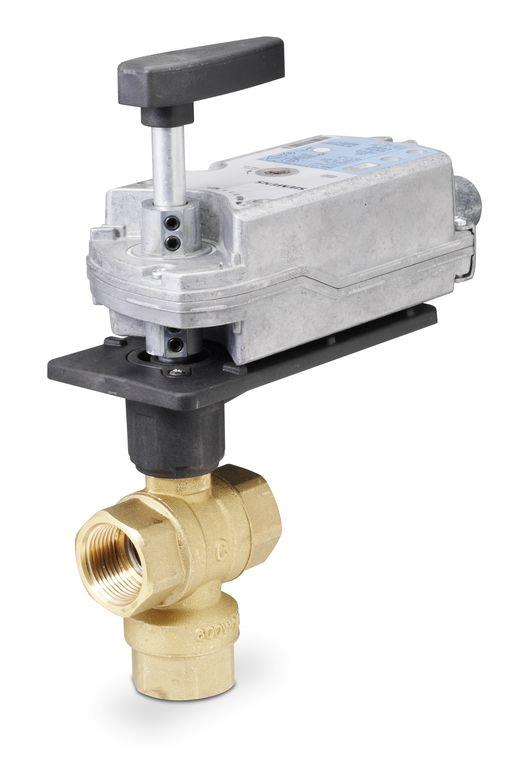

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 171G-10369S

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 171G-10369S Documents

Datasheet(599 Series 3-Way Ball Valves Submittal Sheet)Datasheet(599 Series 3-Way Ball Valves Technical Instructions)Datasheet(OpenAir GMA Series. Spring Return. 62 lb-in. Rotary. Electronic Damper Actuators Technical Instructions)Datasheet(599 Series Ball Valve and Actuator Assemblies Selection Technical Bulletin)Datasheet for Actuator(OpenAir GMA Series Spring Return. 24 Vac / Vdc and 120 Vac. 62 lb-in Direct-Coupled Submittal Sheet) More Info

Overview

Details for 171G-10369S

599 Series 3W, 1-1/2", 63Cv Stainless Steel Ball Valve, Prop, SR

This 599 Series 3-way ball valve with a spring return Proportional (0-10V) actuator assembly, providing 200 PSI close-off, is used to control hot or chilled water and up to 50% glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-1/2-inch valve is 63 Cv, with stainless steel ball and stem, includes an operating handle that can manually operate valve in the event of power failure.
