Documents: ZB4BW0G15

Datasheet More Info

ZB4BW0G15 | Complete body/contact assembly and light block, Harmony XB4, metal, universal LED, body/fixing collar, 1NO + 1NC, 110...120V AC | Square D by Schneider Electric

Brand: Square DSKU: ZB4BW0G15

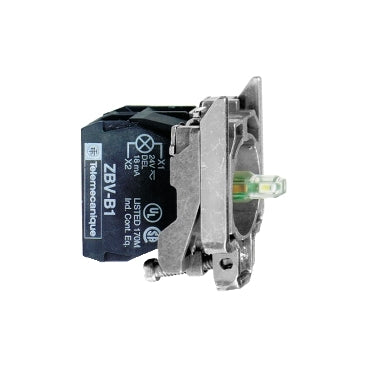

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ZB4BW0G15

Jump to: Overview & Specifications Reviews

Overview Details for ZB4BW0G15

Complete body/contact assembly and light block, Harmony XB4, metal, universal LED, body/fixing collar, 1NO + 1NC, 110...120V AC

This Harmony XB4, light block with body/fixing collar is white, operates with an integral LED. It has 1 x NO + 1 x NC contacts and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.

Specifications

Range of Product: Harmony XB4
Product or Component Type: Complete body/contact assembly and light block
Device short name: ZB4
Fixing collar material: Zamak
Sale per indivisible quantity: 1
Head type: Standard
Contacts type and composition: 1 NO + 1 NC
Contact operation: Slow-break
connections - terminals: Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Light source: Universal LED
Bulb base: Integral LED
light block supply: Direct
Light source colour: White
[Us] rated supply voltage: 110...120 V AC 50/60 Hz
CAD overall width: 1.18 in (30 mm)
CAD overall height: 1.85 in (47 mm)
Terminals description ISO n°1: (11-12)NC
Net Weight: 0.16 lb(US) (0.074 kg)
Contacts usage: Standard
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.06 in (1.5 mm) NC changing electrical state), 0.10 in (2.6 mm) NO changing electrical state), 0.17 in (4.3 mm) total travel)
operating force: 2 N NC changing electrical state, 2.3 N NO changing electrical state
operating torque: 0.44 lbf.in (0.05 N.m) NO changing electrical state
Mechanical durability: 5000000 cycles
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
shape of screw head: Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN 60947-1
[Ie] rated operational current: 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1, 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
electrical durability: 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability: Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Signalling type: Steady
Current Consumption: 14 mA
service life: 100000 h at rated voltage and 25 °C
surge withstand: 1 kV IEC 61000-4-5
Device presentation: Basic sub-assemblies
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
electrical shock protection class: Class I IEC 60536
standards: EN/IEC 60947-1, UL 508, EN/IEC 60947-5-5, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-1
Product Certifications: UL Listed, LROS (Lloyds register of shipping), CSA, DNV, BV, GL
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
resistance to fast transients: 2 kV IEC 61000-4-4
resistance to electromagnetic fields: 9.14 V/m (10 V/m) IEC 61000-4-3
resistance to electrostatic discharge: 6 kV on contact (on metal parts) IEC 61000-2-6, 8 kV in free air (in insulating parts) IEC 61000-2-6
electromagnetic emission: Class B IEC 55011
Category: 22469-PUSHBUTTON,22MM ACCESSORIES-NEW
Discount Schedule: CS2
GTIN: 3389110893311
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.38 in (3.5 cm)
Package 1 Width: 2.24 in (5.7 cm)
Package 1 Length: 2.48 in (6.3 cm)
Package 1 Weight: 2.47 oz (70.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 150
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 25.40 lb(US) (11.522 kg)
Warranty: 18 months
