ZB4SZ3 | Harmony XB4, Blanking plug round, metal, chromium plated, Ø22 | Square D by Schneider Electric

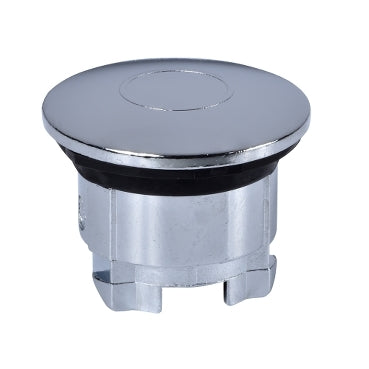

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ZB4SZ3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D ZB4SZ3 Documents

Datasheet More Info

Overview

Details for ZB4SZ3

Harmony XB4, Blanking plug round, metal, chromium plated, Ø22

This Harmony XB4, metal blanking plug is compatible with Harmony XB4, pushbuttons with flush push. This metal blanking plugis designed as an option to fit with your pushbutton units when no function is needed for machine to operate. It is compatible with standard 22mm XB4 control and signaling unitsMetal bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.

Specifications

Range of Product: Harmony XB4
Accessory / Separate Part Type: Blanking plug
Accessory / separate part category: Installation accessory
Product Compatibility: XB4, XB5
Accessory / separate part destination: Ø 22 mm control and signalling units
Material: Metal
Head type: Standard
Additional information: Fixing collar ZB4BZ009 required for mounting must be ordered separately
Sale per indivisible quantity: 10
Net Weight: 0.05 lb(US) (0.023 kg)
Shape of signaling unit head: Round
type of operator: standard handle
Category: 22469-PUSHBUTTON,22MM ACCESSORIES-NEW
Discount Schedule: CS2
GTIN: 3389110099577
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.91 in (2.3 cm)
Package 1 Width: 1.10 in (2.8 cm)
Package 1 Length: 1.10 in (2.8 cm)
Package 1 Weight: 0.92 oz (26.0 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 2.76 in (7.0 cm)
Package 2 Width: 2.76 in (7.0 cm)
Package 2 Length: 3.46 in (8.8 cm)
Package 2 Weight: 9.88 oz (280.0 g)
Unit Type of Package 3: S03
Number of Units in Package 3: 400
Package 3 Height: 11.81 in (30.0 cm)
Package 3 Width: 11.81 in (30.0 cm)
Package 3 Length: 15.75 in (40.0 cm)
Package 3 Weight: 25.77 lb(US) (11.688 kg)
Warranty: 18 months
