SSP04EMA16 | Surge protection device, Surgelogic, EMA, 160kA, 480Y/277VAC, 3 phase, 4 wire, NEMA 1 | Square D by Schneider Electric

Brand: Square DSKU: SSP04EMA16

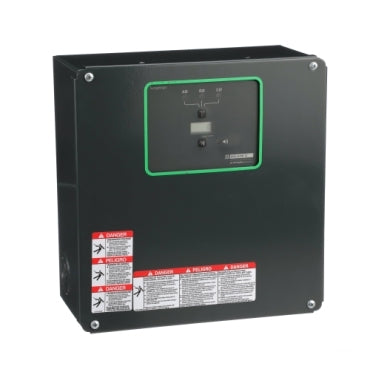

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SSP04EMA16

Jump to: Overview & Specifications Reviews

Overview Details for SSP04EMA16

Surge protection device, Surgelogic, EMA, 160kA, 480Y/277VAC, 3 phase, 4 wire, NEMA 1

Surgelogic™ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration, enhanced EMI/RFI filtering with sine wave tracking in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. This surge protection device is 3 phase, 4-wire + ground, 240/120 V, 160 kA surge current per phase, and short circuit current rating of 200 kA. It has 10 year product warranty and 15 modes of protection.

Specifications

Product: Surge protection device
Range: Surgelogic
Device Short Name: EMA
Surge Current: 160 kA
Voltage Rating: 480Y/277 V AC
Number of Phases: 3 phase
Wiring Configuration: 4-wire
Connection: Lugs AWG 10...AWG 2 copper 35.40 lbf.in (4 N.m)
MCOV: 320 V
Nominal Discharge Current: 20 kA
SCCR: 200 kA
Local Signalling: Status LED green per phase normal operation;Status LED red per phase fault
Provided Equipment: Alarm enable/disable switch;Surge counter;Dry contacts
Device Mounting: Surface
Height: 11.10 in (282 mm)
Width: 9.98 in (253.5 mm)
Depth: 5.31 in (135 mm)
Cable length: 19.02 in (483 mm)
Enclosure Rating: NEMA 1
Enclosure Material: Gray painted sheet steel
Standards: CSA C22.2 No 8;UL 1449:ed. 4;UL 1283:ed. 5
Ambient Operating: 149 °F (65 °C)
Category: 08464-SURGE PROTECTION EMA
Discount Schedule: DE1B
GTIN: 785901988984
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.00 in (15.24 cm)
Package 1 Width: 13.50 in (34.29 cm)
Package 1 Length: 12.00 in (30.48 cm)
Package 1 Weight: 15.96 lb(US) (7.239 kg)
