MA4IMA161 | Surge protection module, Surgelogic, MA, 160kA, 480Y/277VAC, 3 phase, 4 wire, SPD type 1 | Square D

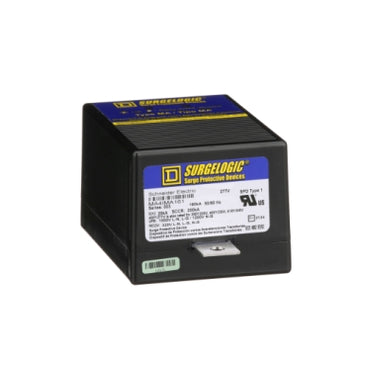

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MA4IMA161
Overview
Details for MA4IMA161
Surge protection module, Surgelogic, MA, 160kA, 480Y/277VAC, 3 phase, 4 wire, SPD type 1
Surgelogic™ EMA replacement modules surge protective devices are apart of modular brick parallel device. The EBA device has multi-stage suppression circuits consisting of field-proven, fast-acting metal oxide varistors (MOVs). These systems provide suppression, enchanced EFI/RFI filtering for all critical modes inside electrical equipment, and shorter lead lengths with superior SPD performance. This surge protection device is 3 phase, 4-wire + ground, 480Y/277 V, 160 kA surge current per phase, and short circuit current rating of 200 kA. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. The device is engineered to UL 489 11th Edition, type 2 SPD and complies with UL 96A 12th Edition Master Label for Lightning Protection Systems.Specifications
- Product
- Surge protection module
- Range
- Surgelogic
- Device Short Name
- IMA
- Accessory Category
- Replacement part
- Surge Current
- 160 kA
- Voltage Rating
- 480Y/277 V AC
- Number of Phases
- 3 phase
- Wiring Configuration
- 4-wire
- Connection
- Terminals
- MCOV
- 320 V
- Nominal Discharge Current
- 20 kA
- SCCR
- 200 kA
- Local Signalling
- Status LED green normal operation
- Provided Equipment
- Alarm enable/disable switch
- Mounting Support
- Panel mounting
- Height
- 6.25 in (158.8 mm)
- Width
- 3.26 in (82.8 mm)
- Depth
- 2.69 in (68.3 mm)
- Enclosure Rating
- NEMA 1
- Enclosure Material
- Black Plastic
- Standards
- UL 1449:ed. 4, UL 1283:ed. 5, CSA C22.2 No 8:1986, ANSI/IEEE C62.41, ANSI/IEEE C62.45, NEC 285
- Category
- 08467-SURGE PROTECTION REPLACEMENT
- Discount Schedule
- DE1B
- GTIN
- 785901075189
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.80 in (12.192 cm)
- Package 1 Width
- 5.30 in (13.462 cm)
- Package 1 Length
- 8.30 in (21.082 cm)
- Package 1 Weight
- 32.00 oz (907.185 g)
