SH30703P02A2000 | servo motor SH3 070 2,94Nm,nokey,multi,nobrake,90°conn.IP54/IP65,8k RPM | Square D

Brand: Square DSKU: SH30703P02A2000

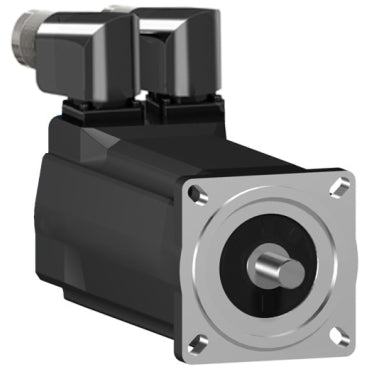

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SH30703P02A2000

Jump to: Overview & Specifications Reviews

Overview Details for SH30703P02A2000

servo motor SH3 070 2,94Nm,nokey,multi,nobrake,90°conn.IP54/IP65,8k RPM

This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 3-pole servo motor features maximum mechanical speed of 8000RPM and smooth shaft end without holding brake. It is an equipped with an absolute multi-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 4.1A and a continuous power of 1330W. The shaft dimensions are 14mm (diameter) x 30mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 and IP65 rated product. The length of this product is 220mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 3.6kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 70mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.

Specifications

Range Compatibility: PacDrive 3
Product or Component Type: Servo motor
Device short name: SH3.....P
Maximum mechanical speed: 8000 rpm
[Us] rated supply voltage: 115...480 V
Phase: Three phase
Continuous stall current: 4.1 A
continuous stall torque: 26.02 lbf.in (2.94 N.m) 115...480 V three phase
Continuous power: 1330 W
peak stall torque: 100.01 lbf.in (11.3 N.m) 115...480 V three phase
nominal output power: 460 W 115 V single phase, 880 W 230 V single phase, 1450 W 400 V three phase, 1550 W 480 V three phase
nominal torque: 26.11 lbf.in (2.95 N.m) 115 V single phase, 24.78 lbf.in (2.8 N.m) 230 V single phase, 18.59 lbf.in (2.1 N.m) 400 V three phase, 18.59 lbf.in (2.1 N.m) 480 V three phase
nominal speed: 1500 rpm 115 V single phase, 3000 rpm 230 V single phase, 6000 rpm 400 V three phase, 7200 rpm 480 V three phase
maximum current Irms: 17 A
Shaft end: Smooth shaft
Shaft diameter: 0.55 in (14 mm)
Shaft length: 1.18 in (30 mm)
IP degree of protection: Shaft bushing without shaft seal ring IP54 EN/IEC 60034-5, Motor IP65 EN/IEC 60034-5, Shaft bushing IP65 EN/IEC 60034-5
Encoder type: Absolute multiturn SinCos Hiperface
Speed feedback resolution: 128 periods
Holding brake: Without
Mounting Support: International standard flange
Motor flange size: 2.76 in (70 mm)
Electrical Connection: Straight connector
torque constant: 0.72 N.m/A 248 °F (120 °C)
back emf constant: 49 V/krpm 68 °F (20 °C)
Number of motor poles: 3
Rotor inertia: 0.58 kg.cm²
stator resistance: 2.7 Ohm
stator inductance: 20.3 mH
maximum radial force Fr: 730 N 1000 rpm, 580 N 2000 rpm, 510 N 3000 rpm, 460 N 4000 rpm, 430 N 5000 rpm, 400 N 6000 rpm
Maximum axial force Fa: 80 N
Type of cooling: Natural convection
Length: 8.66 in (220 mm)
Centring collar diameter: 2.36 in (60 mm)
Centring collar depth: 0.10 in (2.5 mm)
Number of mounting holes: 4
Mounting holes diameter: 0.22 in (5.5 mm)
Circle diameter of the mounting holes: 3.23 in (82 mm)
Net Weight: 7.94 lb(US) (3.6 kg)
Category: 18359-PACDRIVE3 SERVO MOTORS
Discount Schedule: PC52
GTIN: 3606485296197
Returnability: No
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.53 in (11.5 cm)
Package 1 Width: 7.48 in (19.0 cm)
Package 1 Length: 15.55 in (39.5 cm)
Package 1 Weight: 8.95 lb(US) (4.061 kg)
Unit Type of Package 2: S04
Number of Units in Package 2: 3
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 15.75 in (40 cm)
Package 2 Length: 23.62 in (60 cm)
Package 2 Weight: 29.35 lb(US) (13.314 kg)
Package 3 Height: 30.31 in (77 cm)
Warranty: 18 months
