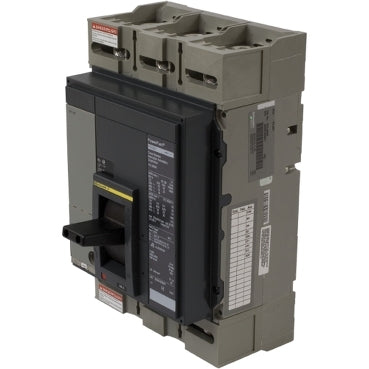

PKL36080 | Circuit breaker, PowerPacT P, 800A, 3 pole, 600VAC, 65kA, lugs, ET1.0l, 80% | Square D by Schneider Electric

Brand: Square DSKU: PKL36080

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PKL36080

Jump to: Overview & Specifications Reviews

Overview Details for PKL36080

Circuit breaker, PowerPacT P, 800A, 3 pole, 600VAC, 65kA, lugs, ET1.0l, 80%

This PowerPact P, circuit breaker has a rated currrent of 800A and a rated operational current of 600VAC with a breaking capacity of 50 kA@600VAC. This unit mounted breaker is a 3-pole and has a continuous current rating of 80 %. This breaker has an electronic trip unit technology and a ET 1.0 trip unit. Dimensions for this product are 12.86 in (H), 8.05 in (W), 8.27 in (D). This product comes with an 18 month warranty.

Specifications

range: PowerPact
product name: PowerPact P
Product or Component Type: Circuit breaker
Device Application: Distribution
Line Rated Current: 800 A
Number of Poles: 3P
Control Type: Toggle
breaking capacity code: K
breaking capacity: AIR 65 kA 240 V AC 50/60 Hz UL 489;AIR 50 kA 480 V AC 50/60 Hz UL 489;AIR 50 kA 600 V AC 50/60 Hz UL 489;Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2;Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage: 600 V AC 50/60 Hz UL 489
Network Frequency: 50/60 Hz
[Ics] rated service breaking capacity: 25 kA 240 V AC 50/60 Hz IEC 60947-2;25 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage: 8 kV IEC 60947-2
trip unit technology: Electronic;basic;ET 1.0I;I
continuous current rating: 80 %
[Ui] rated insulation voltage: 750 V IEC 60947-2
trip unit name: ET 1.0I
suitability for isolation: Yes IEC 60947-2
utilisation category: Category A
AWG gauge: 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
local signalling: 1 trip indicator green)
mounting mode: Unit mount lug)
Mounting Support: Lug
electrical connection: Lugs line;Lugs load
terminal identifier: AL800M23K
long time pick-up adjustment range: 1 In
tightening torque: 442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (3 x AWG 3/0...3 x 500 kcmil);8.85…11.51 lbf.in (1.0…1.3 N.m)
number of slots: 2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in)
Power wire stripping length: 0.98 in (25 mm)
Height: 12.86 in (326.64 mm)
Width: 8.27 in (210.06 mm)
Depth: 8.05 in (204.47 mm)
Net Weight: 32 lb(US) (14.51 kg)
Quantity per Set: 1
circuit breaker application: HACR rated
quality labels: CE
Standards: UL;CSA;NEMA;NOM-003-SCFI-2000;IEC 60947-2
product certifications: UL;CSA;NOM
IP degree of protection: Front cover IP40
pollution degree: 3 IEC 60947-1
Ambient air temperature for operation: 28…158 °F (-2…70 °C)
Ambient Air Temperature for Storage: -58…185 °F (-50…85 °C)
operating altitude: < 6561.68 ft (2000 m) without derating;13123.36 ft (4000 m) with derating
Category: 01215-PG;H;J;K;L;N UNIT MT BREAKERS
Discount Schedule: DE2
GTIN: 3606486286494
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 12.87 in (32.7 cm)
Package 1 Width: 8.27 in (21.0 cm)
Package 1 Length: 8.03 in (20.4 cm)
Package 1 Weight: 32.00 lb(US) (14.515 kg)
Warranty: 18 months
