LC2K0901F7 | Reversing contactor, TeSys K, 3P, AC-3, lt or eq to 440V 9A, 1 NC, 110VAC coil | Square D by Schneider Electric

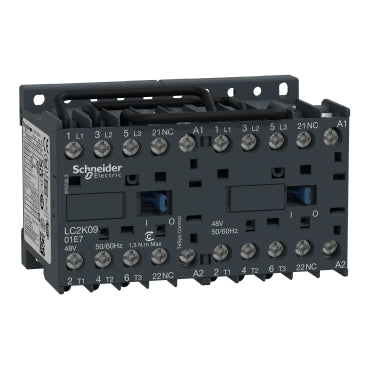

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC2K0901F7
Overview Details for LC2K0901F7
Reversing contactor, TeSys K, 3P, AC-3, lt or eq to 440V 9A, 1 NC, 110VAC coil
LC2K0901F7 is a compact 3-pole TeSys K reversing contactor from Schneider Electric for motor applications. Rated 9A AC-3 4kW@400V, it includes a 110V 50/60Hz AC coil, 2NC auxiliary contacts, a mechanical interlock and pre-wired reversing circuit. LC2K0901F7 is a 3-pole TeSys K reversing contactor from Schneider Electric for simple motor applications rated up to 4kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it is assembled with a mechanical interlock and a pre-wired reversing circuit. It includes a 110V 50/60Hz AC coil and 2NC built-in auxiliary contacts. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Provides a 110V AC coil compatible 50/60Hz and 2NC built-in auxiliary contact. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).Specifications
- Range
- TeSys
- Product name
- TeSys K
- Product or Component Type
- Reversing contactor
- Device short name
- LC2K
- Device Application
- Control
- Contactor application
- Resistive load, Motor control
- Utilisation category
- AC-4, AC-1, AC-3, AC-3e
- Device presentation
- Preassembled with reversing power busbar
- Poles description
- 3P
- power pole contact composition
- 3 NO
- [Ue] rated operational voltage
- Power circuit 690 V AC 50/60 Hz, Signalling circuit <= 690 V AC 50/60 Hz
- [Ie] rated operational current
- 20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit, 16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit, 9 A<= 440 V AC AC-3 power circuit, 9 A<= 440 V AC AC-3e power circuit
- motor power kW
- 2.2 kW 220...230 V AC 50/60 Hz, 4 kW 380...415 V AC 50/60 Hz, 4 kW 440 V AC 50/60 Hz, 4 kW 480 V AC 50/60 Hz, 4 kW 500...600 V AC 50/60 Hz, 4 kW 660...690 V AC 50/60 Hz
- control circuit type
- AC 50/60 Hz
- [Uc] control circuit voltage
- 110 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NC
- [Uimp] rated impulse withstand voltage
- 8 kV
- Overvoltage category
- III
- [Ith] conventional free air thermal current
- 20 A 122 °F (50 °C) power circuit, 10 A 122 °F (50 °C) signalling circuit
- Irms rated making capacity
- 110 A AC power circuit NF C 63-110, 110 A AC power circuit IEC 60947, 110 A AC signalling circuit IEC 60947
- rated breaking capacity
- 110 A 415 V IEC 60947, 110 A 440 V IEC 60947, 80 A 500 V IEC 60947, 110 A 220...230 V IEC 60947, 110 A 380...400 V IEC 60947, 70 A 660...690 V IEC 60947
- [Icw] rated short-time withstand current
- 90 A 122 °F (50 °C) - 1 s power circuit, 85 A 122 °F (50 °C) - 5 s power circuit, 80 A 122 °F (50 °C) - 10 s power circuit, 60 A 122 °F (50 °C) - 30 s power circuit, 45 A 122 °F (50 °C) - 1 min power circuit, 40 A 122 °F (50 °C) - 3 min power circuit, 80 A - 1 s signalling circuit, 90 A - 500 ms signalling circuit, 110 A - 100 ms signalling circuit, 20 A 122 °F (50 °C) - >= 15 min power circuit
- associated fuse rating
- 25 A gG <= 440 V power circuit, 25 A aM power circuit, 10 A gG signalling circuit IEC 60947, 10 A gG signalling circuit VDE 0660
- average impedance
- 3 mOhm - Ith 20 A 50 Hz power circuit
- [Ui] rated insulation voltage
- Power circuit 600 V UL 508, Power circuit 690 V IEC 60947-4-1, Signalling circuit 690 V IEC 60947-4-1, Signalling circuit 690 V IEC 60947-5-1, Signalling circuit 600 V UL 508, Power circuit 600 V CSA C22.2 No 14, Signalling circuit 600 V CSA C22.2 No 14
- electrical durability
- 0.18 Mcycles 20 A AC-1 <= 440 V, 1.3 Mcycles 9 A AC-3 <= 440 V, 1.3 Mcycles 9 A AC-3e <= 440 V
- Interlocking type
- Mechanical
- Mounting Support
- Plate, Rail
- standards
- IEC 60947, NF C 63-110, VDE 0660, BS 5424
- Product Certifications
- UL, CSA, UKCA
- connections - terminals
- screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid, screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible without cable end, screw clamp terminals 1 0.00…0.00 in² (0.34…2.5 mm²)flexible with cable end, screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid, screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)flexible without cable end, screw clamp terminals 2 0.00…0.00 in² (0.34…1.5 mm²)flexible with cable end
- tightening torque
- 7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals Philips No 2, 7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals flat Ø 6 mm, 7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals pozidriv No 2
- operating time
- 10...20 ms coil energisation and NO closing, 10...20 ms coil de-energisation and NO opening
- safety reliability level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Mechanical durability
- 5 Mcycles
- maximum operating rate
- 3600 cyc/h
- control circuit voltage limits
- Operational 0.8...1.15 Uc 122 °F (50 °C)), Drop-out 0.2...0.75 Uc 122 °F (50 °C))
- inrush power in VA
- 30 VA 68 °F (20 °C))
- hold-in power consumption in VA
- 4.5 VA 68 °F (20 °C))
- heat dissipation
- 1.3 W
- auxiliary contacts type
- Instantaneous 1 NC
- Signalling circuit frequency
- <= 400 Hz
- minimum switching current
- 5 mA signalling circuit
- minimum switching voltage
- 17 V signalling circuit
- non overlap distance
- 0.02 in (0.5 mm)
- insulation resistance
- > 10 MOhm signalling circuit
- IP degree of protection
- IP20 VDE 0106
- protective treatment
- TC IEC 60068, TC DIN 50016
- Ambient Air Temperature for Operation
- -13…122 °F (-25…50 °C)
- Ambient Air Temperature for Storage
- -58…176 °F (-50…80 °C)
- operating altitude
- 6561.68 ft (2000 m) without derating
- flame retardance
- V1 conforming to UL 94, Requirement 2 conforming to NF F 16-101, Requirement 2 conforming to NF F 16-102
- mechanical robustness
- Shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27, Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27, Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27, Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27, Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27, Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27, Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6, Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
- Height
- 2.28 in (58 mm)
- Width
- 3.54 in (90 mm)
- Depth
- 2.24 in (57 mm)
- Net Weight
- 0.86 lb(US) (0.39 kg)
- Category
- 22327-CTR,K-LINE,AC,OPEN,REV
- Discount Schedule
- I12
- GTIN
- 3389110491906
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.36 in (6.0 cm)
- Package 1 Width
- 2.56 in (6.5 cm)
- Package 1 Length
- 3.62 in (9.2 cm)
- Package 1 Weight
- 12.84 oz (364.0 g)
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 25
- Package 2 Height
- 5.91 in (15.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 21.05 lb(US) (9.55 kg)
- Warranty
- 18 months
