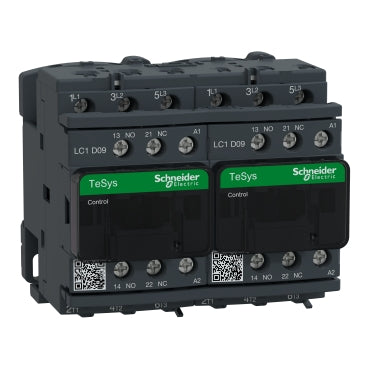

LC2D09B7V | TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V AC coil | Square D by Schneider Electric

Brand: Square DSKU: LC2D09B7V

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC2D09B7V

Jump to: Overview & Specifications Reviews

Overview Details for LC2D09B7V

TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V AC coil

TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides 24V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical and electrical interlock. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys, TeSys Deca
Product name: TeSys D, TeSys Deca
Product or Component Type: Reversing contactor
Device short name: LC2D
Contactor application: Resistive load, Motor control
Utilisation category: AC-1, AC-3
Device presentation: Preassembled with reversing power busbar
Poles description: 3P
power pole contact composition: 3 NO
[Ue] rated operational voltage: Power circuit <= 690 V AC 25...400 Hz, Power circuit <= 300 V DC
[Ie] rated operational current: 9 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit, 25 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
motor power kW: 2.2 kW 220...230 V AC 50 Hz, 4 kW 380...400 V AC 50 Hz, 4 kW 415...440 V AC 50 Hz, 5.5 kW 500 V AC 50 Hz, 5.5 kW 660...690 V AC 50 Hz
motor power HP (UL / CSA): 0.5 hp 115 V at AC 60 Hz for 1 phase, 1 hp 230/240 V at AC 60 Hz for 1 phase, 2 hp 200/208 V at AC 60 Hz for 3 phase, 2 hp 230/240 V at AC 60 Hz for 3 phase, 5 hp 460/480 V at AC 60 Hz for 3 phase, 7.5 hp 575/600 V at AC 60 Hz for 3 phase
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 24 V AC 50/60 Hz
Auxiliary contact composition: 1 NO + 1 NC
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947
Overvoltage category: III
[Ith] conventional free air thermal current: 10 A 140 °F (60 °C) signalling circuit, 25 A 140 °F (60 °C) power circuit
Irms rated making capacity: 250 A 440 V power circuit IEC 60947, 140 A AC signalling circuit IEC 60947-5-1, 250 A DC signalling circuit IEC 60947-5-1
rated breaking capacity: 250 A 440 V power circuit IEC 60947
[Icw] rated short-time withstand current: 30 A 104 °F (40 °C) - 10 min power circuit, 61 A 104 °F (40 °C) - 1 min power circuit, 105 A 104 °F (40 °C) - 10 s power circuit, 210 A 104 °F (40 °C) - 1 s power circuit, 100 A - 1 s signalling circuit, 120 A - 500 ms signalling circuit, 140 A - 100 ms signalling circuit
associated fuse rating: 25 A gG <= 690 V type 1 power circuit, 20 A gG <= 690 V type 2 power circuit, 10 A gG signalling circuit IEC 60947-5-1
average impedance: 2.5 mOhm - Ith 25 A 50 Hz power circuit
[Ui] rated insulation voltage: Power circuit 690 V IEC 60947-4-1, Power circuit 600 V CSA, Power circuit 600 V UL, Signalling circuit 690 V IEC 60947-1, Signalling circuit 600 V CSA, Signalling circuit 600 V UL
electrical durability: 0.6 Mcycles 25 A AC-1 <= 440 V, 2 Mcycles 9 A AC-3 <= 440 V
power dissipation per pole: 0.2 W AC-3, 1.56 W AC-1
Front cover: With
Interlocking type: Electrical and mechanical
Mounting Support: Plate, Rail
standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1
Product Certifications: DNV, CSA, CCC, UL, GL, LROS (Lloyds register of shipping), BV, RINA, GOST, UKCA
connections - terminals: Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end, Power circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end, Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end, Power circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end, Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)solid, Power circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)solid, Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end, Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end, Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end, Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end, Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)solid, Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)solid
tightening torque: Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm, Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2, Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm, Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2, Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2, Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals pozidriv No 2
operating time: 12...22 ms closing, 4...19 ms opening
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Mechanical durability: 15 Mcycles
maximum operating rate: 3600 cyc/h 140 °F (60 °C)
Coil technology: Without built-in suppressor module
control circuit voltage limits: 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz, 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz, 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz, 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
inrush power in VA: 70 VA 60 Hz 0.75 68 °F (20 °C)), 70 VA 50 Hz 0.75 68 °F (20 °C))
hold-in power consumption in VA: 7.5 VA 60 Hz 0.3 68 °F (20 °C)), 7 VA 50 Hz 0.3 68 °F (20 °C))
heat dissipation: 2…3 W 50/60 Hz
auxiliary contacts type: Mechanically linked 1 NO + 1 NC IEC 60947-5-1, Mirror contact 1 NC IEC 60947-4-1
Signalling circuit frequency: 25...400 Hz
minimum switching current: 5 mA signalling circuit
minimum switching voltage: 17 V signalling circuit
non-overlap time: 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
insulation resistance: > 10 MOhm signalling circuit
IP degree of protection: IP20 front face IEC 60529
climatic withstand: IACS E10, IEC 60947-1 Annex Q category D
protective treatment: TH IEC 60068-2-30
Pollution degree: 3
ambient air temperature for operation: -40…140 °F (-40…60 °C), 140…158 °F (60…70 °C) with derating
Ambient Air Temperature for Storage: -76…176 °F (-60…80 °C)
operating altitude: 0...9842.52 ft (0...3000 m)
fire resistance: 1562 °F (850 °C) IEC 60695-2-1
flame retardance: V1 conforming to UL 94
mechanical robustness: Vibrations contactor open2 Gn, 5...300 Hz, Vibrations contactor closed4 Gn, 5...300 Hz, Shocks contactor open10 Gn for 11 ms, Shocks contactor closed15 Gn for 11 ms
Height: 3.03 in (77 mm)
Width: 3.54 in (90 mm)
Depth: 3.39 in (86 mm)
Net Weight: 1.51 lb(US) (0.687 kg)
Category: 22354-CTR,TESYS D,OPEN,9-38A AC
Discount Schedule: I12
GTIN: 3389110407136
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.35 in (13.6 cm)
Package 1 Width: 3.58 in (9.1 cm)
Package 1 Length: 4.45 in (11.3 cm)
Package 1 Weight: 28.92 oz (820.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 6
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 11.85 lb(US) (5.375 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 96
Package 3 Height: 30.31 in (77.0 cm)
Package 3 Width: 31.50 in (80.0 cm)
Package 3 Length: 23.62 in (60.0 cm)
Package 3 Weight: 208.34 lb(US) (94.5 kg)
Warranty: 18 months
