VS-2253-831-9-06 | VB: 1/2 in, 2W, Ball, NPT, SS, 8 cv, 130 PSI; Act (MS4D-8033-100): Elec, Prop, SR, NC, 24 VAC/20-30 VDC, Plen, 30 in-lb, Rotary, N2, SmartX | Schneider Electric

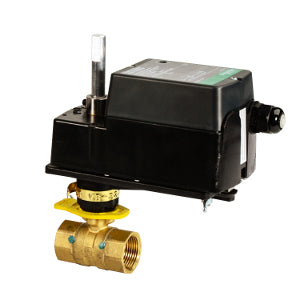

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-2253-831-9-06
Overview Details for VS-2253-831-9-06
VB: 1/2 in, 2W, Ball, NPT, SS, 8 cv, 130 PSI; Act (MS4D-8033-100): Elec, Prop, SR, NC, 24 VAC/20-30 VDC, Plen, 30 in-lb, Rotary, N2, SmartX
Valve Assembly:- Body Size: 1/2 in
- Configuration: 2-Way
- Type: Ball
- Connection: NPT
- Material Trim: Stainless Steel
- Flow Coefficient: 8 cv
- Close-Off Pressure: 130 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Power Input Voltage: 24 VAC or 20 to 30 VDC
- Leads and Connections: 3 ft Plenum
- Torque: 30 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Valve Body: VB-2253-500-9-06
- Valve Linkage: Linkage included with valve body
- Actuator: MS4D-8033-100
- Actuator Range: SmartX
Product Alert: Not for use with steam.
Specifications
| Item Number | VS-2253-831-9-06 |
| Brand | Schneider Electric |
| Control Input | Modulating |
| Control Valves Type | Ball Valve |
| CV / GPM | 8 Cv |
| End Switch | No |
| Housing | NEMA 1 |
| Spring Return | Spring Return |
| Valve Size | 0.5" - 2 Way |
| Voltage | 24V |
