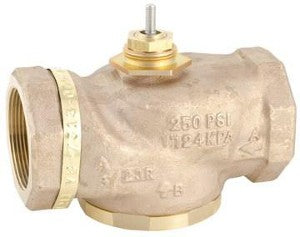

Venta, Globe Valve, 1-1/2 in, 3-way mixing, straight threaded NPT, stem up closes port A, brass trim, 20 Cv

Valve Body (VB-7313-0-4-10):

• Body Size: 1-1/2 in
• Configuration: 3-Way Mixing
• Type: Globe
• Connection: NPT
• Stem Flow Action: Stem down flow A to AB
• Material Trim: Brass
• Flow Coefficient: 28 cv
• Control Media: Glycol 25 to 60%, Water
• Product Line: Schneider Electric
• Product Range: Venta
• Product Series: VB-7300

Product Alert: Not for use with steam Schneider Electric NSR Forta M400A-VB, M800A-VB, and M1500A-VB Screw Mount series linear actuators mount directly onto 1/2"…2" VB-7xxx series two-way and three-way globe valve bodies. Schneider Electric NSR Forta M400A, M800A and M1500A U-Bolt series linear actuators mount to a valve with additional linkage. Applications include chilled or hot water and steam. Field selectable input signals include reverse and direct acting, floating or proportional 0…10 Vdc, 2…10 Vdc, or 4…20 mAdc, and proportional sequencing input signal ranges1 . MG350 Non-spring actuators and VB-7000 series two and three-way globe valves provide for control of fan coils, unit ventilators, reheat, cooling units, perimeter heating and other applications. Input signal options include 0…10 Vdc, 2…10 Vdc, 4…20 mA proportional, floating, two-position, and pulse width modulation (PWM).
