T36AN13G7 | TeSys NEMA Sz 00 open starter, 3P, 120 VAC | Square D by Schneider Electric

Brand: Square DSKU: T36AN13G7

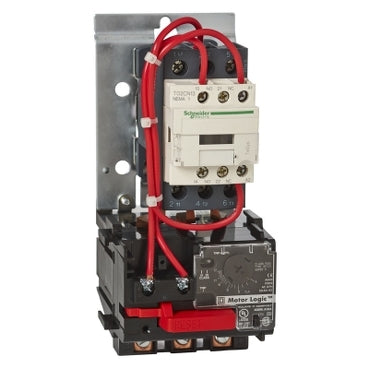

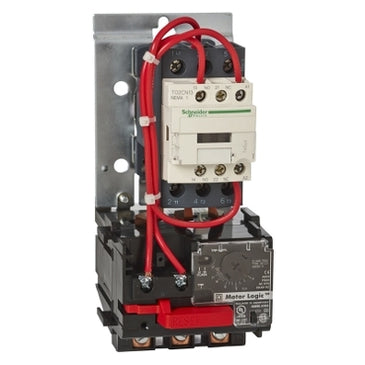

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to T36AN13G7

Jump to: Overview & Specifications Reviews

Overview Details for T36AN13G7

TeSys NEMA Sz 00 open starter, 3P, 120 VAC

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 00 motor starter has a 9 amperage continuous current rating. It also has ratings of 1.5 HP at 200 to 230 Vac and 2 HP at 460 and 575 VAC poly phase. This motor starter has a Motor Logic solid state overload relay with a Class 10/20 rating. The overload is adjustable from 3 to 9 amperes. The starter has a 120 VAC replaceable coil with common control. Starter has 1 normally open and 1 normally closed auxiliary contact. This starter is not in an enclosure. Motor starter is UL listed and CSA Certified.

Specifications

Product: Starter
Range of Product: TeSys N
Current Rating: 9 A
Certifications: UL Listed;CSA
Control Circuit Type: Common control circuit
Enclosure Type: Not rated (open device)
Auxiliary Contacts: 1 NO + 1 NC
Horsepower Rating: 1.5 HP 200 V AC;1.5 HP 230 V AC;2 HP 460 V AC;2 HP 575 V AC
Number of Poles: 3P
Phase: 3 phase
Maximum Voltage Rating: 600 V AC
NEMA Size: 00
Control Circuit Voltage: 120 V AC
Starter Type: Non reversing
Electrical Connection: Screw clamp terminals
Overload Type: Solid state Motor Logic class 10/20 3…9 A
Category: 21198-TESYS N STARTERS SIZES 00 - 2
Discount Schedule: CP1
GTIN: 785901955269
Returnability: No
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 10.50 in (26.67 cm)
Package 1 Width: 10.50 in (26.67 cm)
Package 1 Length: 8.00 in (20.32 cm)
Package 1 Weight: 5.92 lb(US) (2.685 kg)
