T36BN13G7 | TeSys N Starter, Open Device, NEMA Size 0, 18A, 3P, 3-Phases, 120 VAC, Non-Reversing | Square D by Schneider Electric

Brand: Square DSKU: T36BN13G7

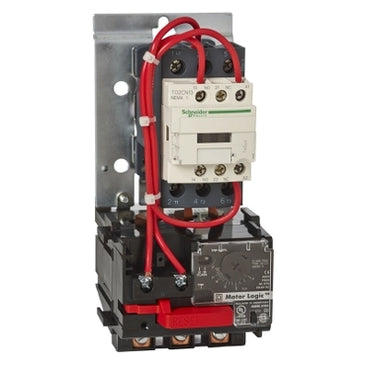

Square D | T36BN13G7
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to T36BN13G7
Jump to: Overview & Specifications Reviews

Overview Details for T36BN13G7

TeSys N Starter, Open Device, NEMA Size 0, 18A, 3P, 3-Phases, 120 VAC, Non-Reversing

TeSys N Starter
  • Degree of Protection: Open Device
  • Line Rated Current: 18A
  • NEMA Size: 0
  • Auxiliary Contact Composition: 1 NO + 1 NC
  • Poles Description: 3P
  • Number of Phases: 3-Phases
  • Control Circuit Voltage: 120 VAC
  • Motor Starter Type: Non-Reversing
  • Electrical Connection: Screw Clamp Terminals TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 0 motor starter has an 18 amperage continuous current rating. It also has ratings of 3 HP at 200 to 230 Vac and 5 HP at 460 and 575 VAC poly phase. This motor starter has a Motor Logic solid state overload relay with a Class 10/20 rating. The overload is adjustable from 6 to 18 amperes. The starter has a 120 VAC replaceable coil with common control. Starter has 1 normally open and 1 normally closed auxiliary contact. This starter is not in an enclosure. Motor starter is UL listed and CSA Certified.

    • Specifications

    Product
    Starter
    Range of Product
    TeSys N
    Current Rating
    18 A
    Certifications
    UL Listed;CSA
    Control Circuit Type
    Common control circuit
    Enclosure Type
    Not rated (open device)
    Auxiliary Contacts
    1 NO + 1 NC
    Horsepower Rating
    3 HP 200 V AC;3 HP 230 V AC;5 HP 460 V AC;5 HP 575 V AC
    Number of Poles
    3P
    Phase
    3 phase
    Maximum Voltage Rating
    600 V AC
    NEMA Size
    0
    Control Circuit Voltage
    120 V AC
    Starter Type
    Non reversing
    Electrical Connection
    Screw clamp terminals
    Overload Type
    Solid state Motor Logic class 10/20 6…18 A
    Category
    21198-TESYS N STARTERS SIZES 00 - 2
    Discount Schedule
    CP1
    GTIN
    785901990284
    Returnability
    No
    Country of origin
    US
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    5.92 lb(US) (2.685 kg)
