SD315DN10B400 | Motion Control Stepper Motor Drive - SD315 - Pulse Direction Without Oscillator | Square D

Brand: Square DSKU: SD315DN10B400

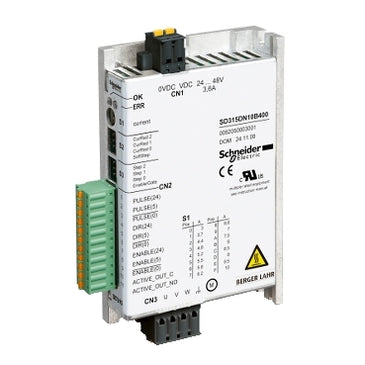

Square D | SD315DN10B400
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SD315DN10B400

Overview Details for SD315DN10B400

Motion Control Stepper Motor Drive - SD315 - Pulse Direction Without Oscillator

This product is part of the Lexium SD3 range, an offer of stepper motors for motion control. The 3-phase stepper motor drive with an integrated pulse/direction communication interface. It is a motor drive with a rated supply voltage of 24V to 48V and a motor phase current of 10A. It features natural convection cooling. It is an IP20 rated product. Its dimensions are 74.5mm (width) x 23.5mm (depth) x 117mm (height). It weighs 0.25kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, food and beverage applications. This product is certified by CE, CUL and UL. It meets EN/IEC 50178, EN/IEC 61800-5-1, EN/IEC 61800-3 environment 1/2 and EN/IEC 61800-3 standards. The SD3 is a universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Lexium SD3, three-phase range up to 19.7Nm with high accuracy and high torque at low rotation speeds.

Specifications

Range of Product
Lexium SD3
Product or Component Type
Motion stepper drive
device short name
SD315
supply voltage limits
19…60 V
format of the drive
Block
Phase
Single phase
[Us] rated supply voltage
24...48 V - 15...10 %
supply voltage type
DC
communication interface
Pulse/direction;Integrated
maximum motor phase current
10 A
current consumption
<= 7.5 mA
power losses
<= 7 W
associated fuse rating
10 A
overvoltage category
III
maximum leakage current
30 mA
voltage state 0 guaranteed
<= 5 V 24 V optocoupler input signals;<= 0.4 V 5 V optocoupler input signals
voltage state 1 guaranteed
15...30 V 24 V optocoupler input signals;2.5...5.25 V 5 V optocoupler input signals
input current
25 mA 5 V optocoupler input signals;7 mA 24 V optocoupler input signals
maximum input frequency
200 kHz 24 V optocoupler input signals;200 kHz 5 V optocoupler input signals
maximum switching voltage
30 V DC readiness signal output)
maximum switching current
200 mA readiness signal output)
maximum voltage drop
<1 V 50 mA load readiness signal output
physical interface
RS422 - pulse/direction interface without oscillator
residual ripple
< 5 % 24 V control voltage)
local signalling
1 LED - ERR;1 LED - RUN
type of cooling
Natural convection
Height
4.61 in (117 mm)
Width
2.93 in (74.5 mm)
Depth
0.93 in (23.5 mm)
shock resistance
15 gn 11 ms EN/IEC 60068-2-27
Net Weight
0.55 lb(US) (0.25 kg)
electromagnetic compatibility
Electrostatic discharge level 3 EN/IEC 61000-4-2;Immunity to electrical transients level 4 EN/IEC 61000-4-4;Immunity to radiated radio-electrical interference level 3 EN/IEC 61000-4-3;Voltage/current impulse level 3 EN/IEC 61000-4-5
Standards
EN/IEC 61800-3 environment 1;EN/IEC 50178;EN/IEC 61800-5-1;EN/IEC 61800-3 environment 2;EN/IEC 61800-3
Product Certifications
cUL;UL
Marking
CE
ambient air temperature for operation
32…122 °F (0…50 °C)
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
pollution degree
Level 2
relative humidity
5…85 % without condensation
operating altitude
<= 3280.84 ft (1000 m) without derating;> 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C;lateral distance of > 20 mm)
vibration resistance
1 gn 13…150 Hz)EN/IEC 60068-2-6;1.5 mm 3…13 Hz)EN/IEC 60068-2-6
IP degree of protection
IP20
Category
18285-STEPPER DRIVES
Discount Schedule
PC55
GTIN
3606485186139
Returnability
No
Country of origin
DE
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.68 in (6.8 cm)
Package 1 Width
5.04 in (12.8 cm)
Package 1 Length
7.40 in (18.8 cm)
Package 1 Weight
11.43 oz (324.0 g)
Unit Type of Package 2
S04
Number of Units in Package 2
36
Package 2 Height
11.81 in (30.0 cm)
Package 2 Width
15.75 in (40.0 cm)
Package 2 Length
23.62 in (60.0 cm)
Package 2 Weight
27.56 lb(US) (12.5 kg)
Warranty
18 months
