QBL32200LU | PowerPact Q Molded Case Circuit Breaker, 200A, 240V AC, 3-Pole, 10kA | Square D by Schneider Electric

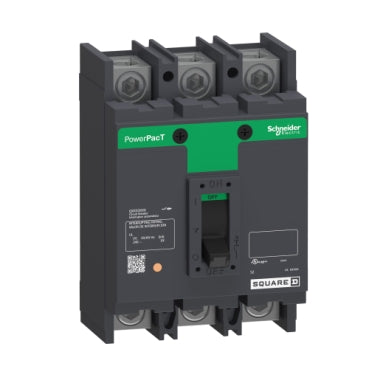

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QBL32200LU

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D QBL32200LU Documents

Datasheet More Info

Overview

Details for QBL32200LU

PowerPact Q Molded Case Circuit Breaker, 200A, 240V AC, 3-Pole, 10kA

PowerPact Q Molded Case Circuit Breaker

Trip Unit Technology: Thermal-magnetic
Line Rated Current: 200A
System Voltage: 240V AC
Number of Poles: 3-Pole
Breaking Capacity: 10kA 240V AC
Mounting Mode: Unit mount
Electrical Connection: Lugs load AWG 4-300 kcmil aluminum/copper

The PowerPact® Q-frame line of circuit breakers include QB, QD, QG and QJ molded case circuit breakers and QB automatic switches. They are rated 240 Vac, 250 A max. and are available in lug or bus-connected unit-mount constructions, or I-Line® group-mounted construction. PowerPact Q-frame circuit breakers are rated for 240 Vac (208Y/120 Vac for 3-pole 100 kA) and are available with UL® Listed interruption ratings from 10 kA to 100 kA. Unit-mount circuit breakers are available with lugs on both ends for cabled applications or with mounting studs for bus-mounted applications. These circuit breakers may be mounted in individual enclosures, metering devices, panelboards or switchboards. The PowerPact Q-frame circuit breaker is a direct replacement for the Q2 Series device. This PowerPact Q, circuit breaker is a 3-pole and has a rated current of 200A. This breaker has a breaking capacity of 10kA@240VAC and has a continuous currrent rating of 80 %. This unit mounted breaker has a thermal-magnetic trip unit technology with a magnetic hold current of 1200 A and a magnetic tripping current of 2400A. Dimensions for this product are 6.47 in (H), 4.5 in (W), 3.93 in (D). This product complys to UL listed, CSA & IEC standards.

Specifications

range: PowerPact
product name: PowerPact Q
Product or Component Type: Circuit breaker
Device Application: Distribution
Line Rated Current: 200 A
Number of Poles: 3P
Control Type: Operating handle
breaking capacity code: B
breaking capacity: 10 kA 120/208 V AC 50/60 Hz UL;10 kA 240 V AC 50/60 Hz UL
[Ue] rated operational voltage: 240 V AC 50/60 Hz UL
Network Frequency: 50/60 Hz
[Uimp] rated impulse withstand voltage: 8 kV UL
trip unit technology: Thermal-magnetic
magnetic tripping current: 2400 A
magnetic hold current: 1200 A
continuous current rating: 80 %
accessory / separate part type: Control wire ON end
utilisation category: Category A
Mechanical durability: 1000 cycles loaded;5000 cycles no load
local signalling: 1 trip indicator green)
mounting mode: Unit mount lug)
Mounting Support: Lug
electrical connection: Lugs load;Lugs line
tightening torque: 247.82 lbf.in (28 N.m) 0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil)
Power wire stripping length: 0.87 in (22 mm)
Height: 6.47 in (164.34 mm)
Width: 4.5 in (114.30 mm)
Depth: 3.93 in (99.82 mm)
circuit breaker application: HACR rated
Standards: UL;CSA;NEMA;NOM-003-SCFI-2000
product certifications: UL;CSA;NOM
Ambient air temperature for operation: 104…158 °F (40…70 °C)
Category: 00023 - QO;Q2L 3P ENCL & BREAKERS
Discount Schedule: DE2
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.56 in (14.127 cm)
Package 1 Width: 5.81 in (14.757 cm)
Package 1 Length: 9.75 in (24.765 cm)
Package 1 Weight: 4.76 lb(US) (2.16 kg)
Warranty: 18 months
