QBL32000S22LW | POWERPACT Q AUTOMATIC MOLDED CASE SWITCH, 3-POLE, 10 KA, 240 V, 225 A | Square D by Schneider Electric

Brand: Square DSKU: QBL32000S22LW

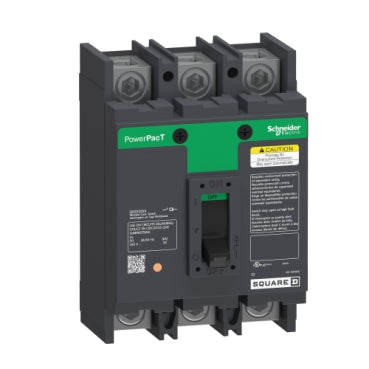

Square D | QBL32000S22LW
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QBL32000S22LW

Overview Details for QBL32000S22LW

POWERPACT Q AUTOMATIC MOLDED CASE SWITCH, 3-POLE, 10 KA, 240 V, 225 A

POWERPACT Q AUTOMATIC MOLDED CASE SWITCH
  • Line Rated Current : 225 A
  • System Voltage : 240 V AC
  • Number of poles : 3
  • Breaking capacity : 10 kA 240 V AC
  • Breaking capacity code : B
The PowerPact® Q-frame line of circuit breakers include QB, QD, QG and QJ molded case circuit breakers and QB automatic switches. They are rated 240 Vac, 250 A max. and are available in lug or bus-connected unit-mount constructions, or I-Line® group-mounted construction. PowerPact Q-frame circuit breakers are rated for 240 Vac (208Y/120 Vac for 3-pole 100 kA) and are available with UL® Listed interruption ratings from 10 kA to 100 kA. Unit-mount circuit breakers are available with lugs on both ends for cabled applications or with mounting studs for bus-mounted applications. These circuit breakers may be mounted in individual enclosures, metering devices, panelboards or switchboards. The PowerPact Q-frame circuit breaker is a direct replacement for the Q2 Series device. This PowerPact Q, automatic switch is a 3-pole and has a rated current of 225A. This breaker has a breaking capacity of 10kA@240VAC and has a continuous currrent rating of 80 %. This unit mounted breaker has a magnetic Trip unit technology with a magnetic hold current of and a magnetic tripping current of 4500A. Dimensions for this product are 6.47 in (H), 4.5 in (W), 3.93 in (D). This product complys to UL listed, CSA & IEC standards.

Specifications

Product or Component Type
Automatic switch
Device Application
Distribution
accessory / separate part type
Control wire ON and OFF end
Line Rated Current
225 A
poles description
3P
breaking capacity code
B
electrical connection
Lugs load;Lugs line
magnetic tripping current
4500 A
Height
6.47 in (164.34 mm)
Width
4.5 in (114.30 mm)
Depth
3.93 in (99.82 mm)
tightening torque
247.82 lbf.in (28 N.m) 0.04…0.23 in² (25…150 mm²) (AWG 4...300 kcmil)
Category
00023 - QO;Q2L 3P ENCL & BREAKERS
Discount Schedule
DE2
GTIN
785901874126
Returnability
No
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.20 in (13.208 cm)
Package 1 Width
5.60 in (14.224 cm)
Package 1 Length
8.80 in (22.352 cm)
Package 1 Weight
4.73 lb(US) (2.145 kg)
Warranty
18 months
