PKA36100U44A | MOLDED CASE CIRCUIT BREAKER 600V 1000A | Square D by Schneider Electric
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Square DSKU: PKA36100U44A

Web Price:

$21,739.39
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

PKA36100U44A | MOLDED CASE CIRCUIT BREAKER 600V 1000A | Square D by Schneider Electric

Square D | PKA36100U44A

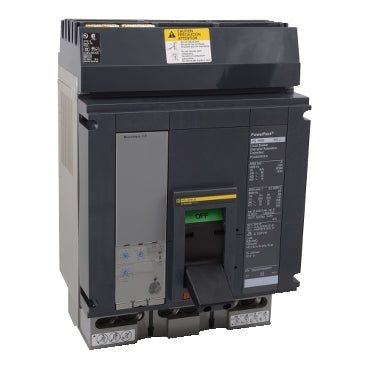

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PKA36100U44A

Documents and manuals

Square D PKA36100U44A Documents

Overview

Details for PKA36100U44A

MOLDED CASE CIRCUIT BREAKER 600V 1000A

MOLDED CASE CIRCUIT BREAKER
  • Line Rated Current : 1000 A
  • Number of Poles : 3P
  • System Voltage : 600 V AC
This PowerPact P, circuit breaker has a rated currrent of 1000A and a rated operational current of 600VAC with a breaking capacity of 50 kA@600VAC. This I-Lineed breaker is a 3-pole and has a continuous current rating of 80 %. This breaker has an electronic trip unit technology and a Micrologic 6.0 A trip unit. Dimensions for this product are 16.16 in (H), 8.05 in (W), 8.27 in (D). This product comes with an 18 month warranty.

Specifications

range
PowerPact
product name
PowerPact P
Product or Component Type
Circuit breaker
Device Application
Distribution
Line Rated Current
1000 A
Number of Poles
3P
Control Type
Toggle
breaking capacity code
K
breaking capacity
AIR 65 kA 240 V AC 50/60 Hz UL 489;AIR 50 kA 480 V AC 50/60 Hz UL 489;AIR 50 kA 600 V AC 50/60 Hz UL 489;Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2;Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage
600 V AC 50/60 Hz UL 489
Network Frequency
50/60 Hz
[Ics] rated service breaking capacity
25 kA 240 V AC 50/60 Hz IEC 60947-2;25 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV IEC 60947-2
trip unit technology
Electronic;ammeter;Micrologic 6.0 A;LSIG
continuous current rating
80 %
[Ui] rated insulation voltage
750 V IEC 60947-2
trip unit name
Micrologic 6.0 A
suitability for isolation
Yes IEC 60947-2
utilisation category
Category A
AWG gauge
4 x AWG 3/0...500 kcmil aluminium/copper
local signalling
Overload 1 trip indicator green);1 trip indicator green);Trip causes 1 trip indicator green)
mounting mode
I-Line bracket)
Mounting Support
Bracket
electrical connection
I-Line connection line;Lugs load
terminal identifier
AL1200P25K
long time pick-up adjustment range
0.4...1 x Ir
Mounting Height
9 in (228.60 mm)
tightening torque
442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (4 x AWG 3/0...500 kcmil);8.85…11.51 lbf.in (1.0…1.3 N.m)
number of slots
2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in)
Power wire stripping length
1.18 in (30 mm)
Height
16.16 in (410.46 mm)
Width
8.27 in (210.06 mm)
Depth
8.05 in (204.47 mm)
Net Weight
32 lb(US) (14.51 kg)
Quantity per Set
1
phase connection
ABC
circuit breaker application
HACR rated
quality labels
CE
Standards
UL;CSA;NEMA;NOM-003-SCFI-2000;IEC 60947-2
product certifications
UL;CSA;NOM
IP degree of protection
Front cover IP40
pollution degree
3 IEC 60947-1
Ambient air temperature for operation
28…158 °F (-2…70 °C)
Ambient Air Temperature for Storage
-58…185 °F (-50…85 °C)
operating altitude
< 6561.68 ft (2000 m) without derating;13123.36 ft (4000 m) with derating
Category
01210-PG;H;J;K;L;N I-LINE BREAKERS
Discount Schedule
DE2
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
32.00 lb(US) (14.515 kg)
Warranty
18 months
