Overview

Details for MA-418-500

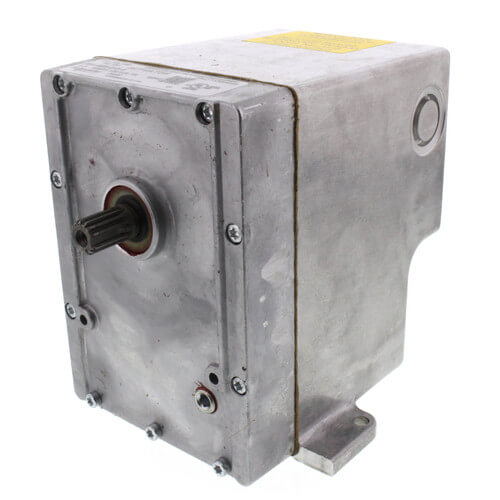

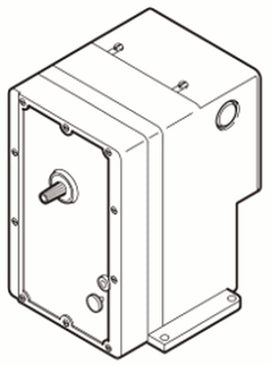

Act (MA-418-500): Elec, 2Pos, SR, 120 VAC, TB, 60 in-lb, Rotary, Auxiliary Switch: 1 SPDT, N1, Erie

Actuator: (MA-418-500):

Actuator Type: Electric
Control Signal: 2-Position (On/Off)
Loss of Power Type: Spring Return
Power Input Voltage: 120 VAC
Leads and Connections: Terminal Block
Torque: 60 in-lb
Mechanical Movement: Rotary
Auxiliary Switch: 1 SPDT
Protection Rating: NEMA 1
Product Line: Schneider Electric
Product Range: Gear Train
Product Series: MAx-4xx
Actuator Use: Dampers, Globe Valves

For two-position operation of dampers, valves, and other equipment which require the return to normal position upon power interruption. Hazardous location models offer a sturdy cast aluminum case with bolted cover. They have two 3/4" pipe tapped openings for joints with rigid metal conduit. All wiring is brought out to separate terminals for ease of installation. These factory enclosure and actuator assemblies are Underwriters Laboratories listed.
