LVCT20100S | LVCT 100A - 0.333 V Output - Solid Core CT - 10 mm | Square D by Schneider Electric

Brand: Square DSKU: LVCT20100S

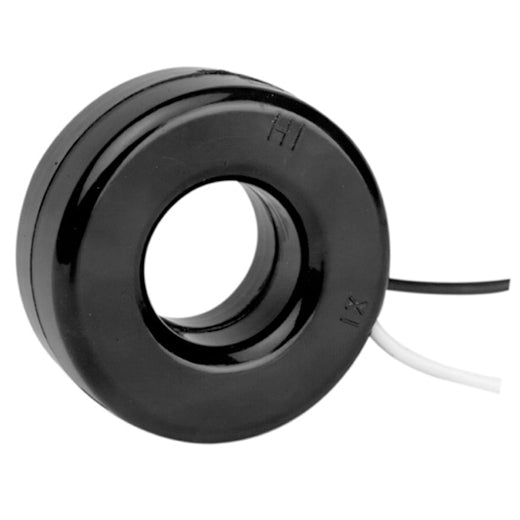

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LVCT20100S

Jump to: Overview & Specifications Reviews

Overview Details for LVCT20100S

LVCT 100A - 0.333 V Output - Solid Core CT - 10 mm

This low-voltage split-core current transformer is part of PowerLogic BCPM (Branch Circuit Power Meter). It is Ideal for retrofit applications with Schneider Electric energy meters which accept low voltage current transducer input It is rated for a 100A circuit. 0.333 V output, size 0. Solid core opening is a Ø=10 mm.

Specifications

Range: PowerLogic
device short name: LVCT
Product or component type: Current transformer
Output voltage: 0.333 V
Electrical connection: Cable: 1.8 m600 V
Product destination: BCPMCS
EM4200
EM4900
Range compatibility: PowerLogic (PowerLogic BCPMSC) BCPMSCA multi-circuit energy meter
PowerLogic (PowerLogic BCPMSC) BCPMSCB multi-circuit energy meter
PowerLogic (PowerLogic BCPMSC) BCPMSCE multi-circuit energy meter
PowerLogic (PowerLogic EM4200) EM4235 energy meter
PowerLogic (PowerLogic EM4200) EM4236 energy meter
PowerLogic (PowerLogic EM4900) EM4904 multi-circuit energy meter
PowerLogic (PowerLogic EM4900) EM4908 multi-circuit energy meter
PowerLogic (PowerLogic EM4900) EM4914 multi-circuit energy meter
PowerLogic (PowerLogic EM4900) EM4928 multi-circuit energy meter
accessory / separate part category: Measurement accessory
current transformer type: A type closed toroid
[In] rated current: 100 A
Network frequency: 50/60 Hz
Measurement accuracy: +/- 0.5 % 5...120 %
Climatic withstand: Relative humidity: 95 %
Ambient air temperature for operation: -40…85 °C
Ambient air temperature for storage: -50…105 °C
Width: 33 mm
Depth: 18 mm
Height: 10 mm diameter:
38 mm external:
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 10.16 cm
Package 1 Width: 20.96 cm
Package 1 Length: 24.77 cm
Package 1 Weight: 90.91 g
