LVCT20403S | LVCT 400A, 0.333 V output, solid core CT, Dia-31 mm | Square D by Schneider Electric

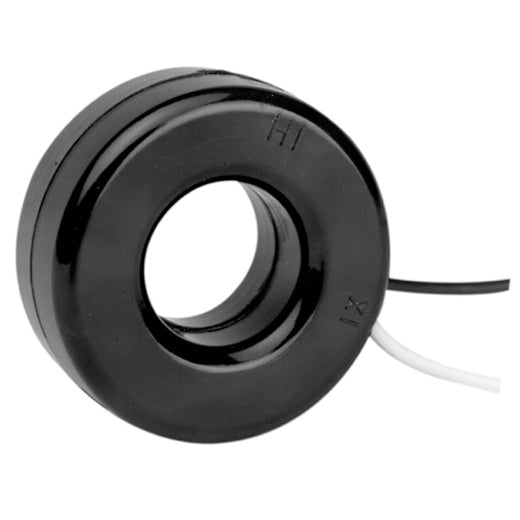

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LVCT20403S
Documents and manuals
Square D LVCT20403S Documents
Overview
Details for LVCT20403S
LVCT 400A, 0.333 V output, solid core CT, Dia-31 mm
This low-voltage split-core current transformer is part of PowerLogic BCPM (Branch Circuit Power Meter). It is Ideal for retrofit applications with Schneider Electric energy meters which accept low voltage current transducer input It is rated for a 400A circuit. 0.333 V output, size 3. Solid core opening is a Ø=31 mm.Specifications
- Range
- PowerLogic
- device short name
- LVCT
- Product or component type
- Current transformer
- Output voltage
- 0.333 V
- Electrical connection
- Cable: 1.8 m600 V
- Product destination
- BCPMCS
EM4200
EM4900 - Range compatibility
- PowerLogic (PowerLogic BCPMSC) BCPMSCA multi-circuit energy meter
PowerLogic (PowerLogic BCPMSC) BCPMSCB multi-circuit energy meter
PowerLogic (PowerLogic BCPMSC) BCPMSCE multi-circuit energy meter
PowerLogic (PowerLogic EM4200) EM4235 energy meter
PowerLogic (PowerLogic EM4200) EM4236 energy meter
PowerLogic (PowerLogic EM4900) EM4904 multi-circuit energy meter
PowerLogic (PowerLogic EM4900) EM4908 multi-circuit energy meter
PowerLogic (PowerLogic EM4900) EM4914 multi-circuit energy meter
PowerLogic (PowerLogic EM4900) EM4928 multi-circuit energy meter - accessory / separate part category
- Measurement accessory
- current transformer type
- A type closed toroid
- [In] rated current
- 400 A
- Network frequency
- 50/60 Hz
- Measurement accuracy
- +/- 0.5 % 5...120 %
- Climatic withstand
- Relative humidity: 95 %
- Ambient air temperature for operation
- -40…85 °C
- Ambient air temperature for storage
- -50…105 °C
- Width
- 70 mm
- Depth
- 25 mm
- Height
- 31 mm diameter:
82 mm external: - Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.16 cm
- Package 1 Width
- 20.96 cm
- Package 1 Length
- 24.77 cm
- Package 1 Weight
- 227.27 g
