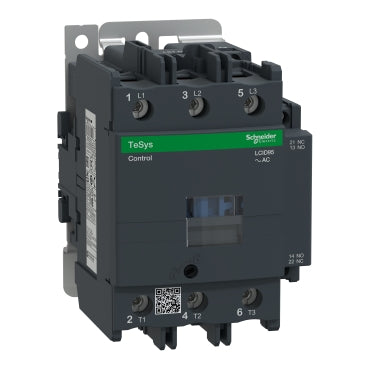

LC1D95M7 | TeSys D Contactor, 3-Poles (3 NO), 95A, 220V AC Coil, Non-Reversing | Square D by Schneider Electric

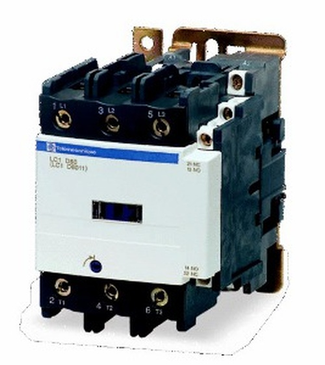

Square D | LC1D95M7
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC1D95M7

Documents and manuals

Square D LC1D95M7 Documents

Overview

Details for LC1D95M7

TeSys D Contactor, 3-Poles (3 NO), 95A, 220V AC Coil, Non-Reversing

TeSys D Contactor
  • Number of Poles: 3-Poles
  • Pole Contact Composition: 3 NO
  • Rated Operational Current: 95A
  • Control Circuit Voltage: 220V AC 50/60 Hz
  • Non-Reversing TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 95A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Contactor is also rated for 7.5HP at 115VAC and 15HP at 240VAC single phase. Contactor is supplied with a 220 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 5.12 inches deep. It weighs 3.55 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
  • Specifications

    range
    TeSys
    Range of Product
    TeSys D
    Product or Component Type
    Contactor
    device short name
    LC1D
    contactor application
    Motor control;Resistive load
    utilisation category
    AC-1;AC-4;AC-3;AC-3e
    poles description
    3P
    [Ue] rated operational voltage
    Power circuit 1000 V AC 25...400 Hz
    [Ie] rated operational current
    95 A 140 °F (60 °C)) <= 440 V AC-3 power circuit;125 A 140 °F (60 °C)) <= 690 V AC-1 power circuit;95 A 140 °F (60 °C)) <= 440 V AC-3e power circuit
    [Uc] control circuit voltage
    220 V AC 50/60 Hz
    motor power kW
    25 kW 220...230 V AC 50 Hz AC-3);45 kW 380...400 V AC 50 Hz AC-3);45 kW 415...440 V AC 50 Hz AC-3);55 kW 500 V AC 50 Hz AC-3);45 kW 660...690 V AC 50 Hz AC-3);45 kW 1000 V AC 50 Hz AC-3)
    Maximum Horse Power Rating
    7.5 hp 120 V at AC 60 Hz for 1 phase;15 hp 230/240 V at AC 60 Hz for 1 phase;30 hp 200/208 V at AC 60 Hz for 3 phase;30 hp 230/240 V at AC 60 Hz for 3 phase;60 hp 460/480 V at AC 60 Hz for 3 phase;60 hp 575/600 V at AC 60 Hz for 3 phase
    compatibility code
    LC1D
    pole contact composition
    3 NO
    contact compatibility
    M11
    protective cover
    With
    [Ith] conventional free air thermal current
    10 A 140 °F (60 °C) signalling circuit;125 A 140 °F (60 °C) power circuit
    Irms rated making capacity
    1100 A 440 V AC power circuit IEC 60947;140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1
    rated breaking capacity
    1100 A 440 V power circuit IEC 60947
    [Icw] rated short-time withstand current
    1100 A 104 °F (40 °C) - 1 s power circuit;800 A 104 °F (40 °C) - 10 s power circuit;400 A 104 °F (40 °C) - 1 min power circuit;135 A 104 °F (40 °C) - 10 min power circuit;140 A - 100 ms signalling circuit;120 A - 500 ms signalling circuit;100 A - 1 s signalling circuit
    associated fuse rating
    10 A gG signalling circuit IEC 60947-5-1;200 A gG <= 690 V type 1 power circuit;160 A gG <= 690 V type 2 power circuit
    average impedance
    0.8 mOhm - Ith 125 A 50 Hz power circuit
    power dissipation per pole
    12.5 W AC-1;7.2 W AC-3;7.2 W AC-3e
    [Ui] rated insulation voltage
    Power circuit 1000 V IEC 60947-4-1;Power circuit 600 V CSA;Power circuit 600 V UL;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL
    overvoltage category
    III
    pollution degree
    3
    [Uimp] rated impulse withstand voltage
    8 kV IEC 60947
    safety reliability level
    B10d = 1.3 Mcycles contactor with nominal load EN/ISO 13849-1;B10d = 20 Mcycles contactor with mechanical load EN/ISO 13849-1
    mechanical durability
    4 Mcycles
    electrical durability
    1.2 Mcycles 95 A AC-3;1.3 Mcycles 125 A AC-1;1.2 Mcycles 95 A AC-3e
    control circuit type
    AC 50/60 Hz standard
    coil technology
    Without built-in suppressor module
    control circuit voltage limits
    0.8...1.1 Uc -40…131 °F (-40…55 °C) operational AC 50 Hz;0.85...1.1 Uc -40…131 °F (-40…55 °C) operational AC 60 Hz;0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;1...1.1 Uc 131…158 °F (55…70 °C) operational AC 50/60 Hz
    inrush power in VA
    245 VA 60 Hz 0.75 68 °F (20 °C));245 VA 50 Hz 0.75 68 °F (20 °C))
    hold-in power consumption in VA
    26 VA 60 Hz 0.3 68 °F (20 °C));26 VA 50 Hz 0.3 68 °F (20 °C))
    heat dissipation
    6…10 W 50/60 Hz
    operating time
    20...35 ms closing;6...20 ms opening
    maximum operating rate
    3600 cyc/h 140 °F (60 °C)
    connections - terminals
    Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid without cable end;Power circuit connector 1 0.01…0.08 in² (4…50 mm²) flexible without cable end;Power circuit connector 2 0.01…0.04 in² (4…25 mm²) flexible without cable end;Power circuit connector 1 0.01…0.08 in² (4…50 mm²) flexible with cable end;Power circuit connector 2 0.01…0.02 in² (4…16 mm²) flexible with cable end;Power circuit connector 1 0.01…0.08 in² (4…50 mm²) solid without cable end;Power circuit connector 2 0.01…0.04 in² (4…25 mm²) solid without cable end
    tightening torque
    Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2;Power circuit 106.21 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm;Power circuit 106.21 lbf.in (12 N.m) connector hexagonal 0.16 in (4 mm);Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2
    auxiliary contact composition
    1 NO + 1 NC
    auxiliary contacts type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
    signalling circuit frequency
    25...400 Hz
    minimum switching voltage
    17 V signalling circuit
    minimum switching current
    5 mA signalling circuit
    insulation resistance
    > 10 MOhm signalling circuit
    non-overlap time
    1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
    Mounting Support
    Rail;Plate
    standards
    EN/IEC 60947-1;EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4
    Product Certifications
    IECEE CB Scheme;UL;CSA;CCC;EAC;LROS (Lloyds register of shipping);RINA;BV;DNV-GL
    IP degree of protection
    IP20 front face IEC 60529
    protective treatment
    THIEC 60068-2-30
    climatic withstand
    IACS E10 exposure to damp heat
    permissible ambient air temperature around the device
    -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
    operating altitude
    0...9842.52 ft (0...3000 m)
    fire resistance
    1562 °F (850 °C) IEC 60695-2-1
    flame retardance
    V1 conforming to UL 94
    mechanical robustness
    Vibrations contactor open 2 Gn;5...300 Hz);Shocks contactor open 8 Gn for 11 ms);Vibrations contactor closed 3 Gn;5...300 Hz);Shocks contactor closed 10 Gn for 11 ms)
    Height
    5.00 in (127 mm)
    Width
    3.35 in (85 mm)
    Depth
    5.12 in (130 mm)
    Net Weight
    3.55 lb(US) (1.61 kg)
    Category
    22359-CTR;TESYS D;OPEN;80-150A AC&DC
    Discount Schedule
    I12
    GTIN
    3389110451634
    Returnability
    Yes
    Country of origin
    CZ
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Height
    5.51 in (14.000 cm)
    Package 1 Width
    5.31 in (13.500 cm)
    Package 1 Length
    3.74 in (9.500 cm)
    Package 1 Weight
    3.43 lb(US) (1.556 kg)
    Unit Type of Package 2
    S02
    Number of Units in Package 2
    5
    Package 2 Height
    5.91 in (15.000 cm)
    Package 2 Width
    11.81 in (30.000 cm)
    Package 2 Length
    15.75 in (40.000 cm)
    Package 2 Weight
    17.84 lb(US) (8.090 kg)
    Unit Type of Package 3
    P06
    Number of Units in Package 3
    80
    Package 3 Height
    29.53 in (75.000 cm)
    Package 3 Width
    23.62 in (60.000 cm)
    Package 3 Length
    31.50 in (80.000 cm)
    Package 3 Weight
    309.22 lb(US) (140.260 kg)
    Warranty
    18 months
