8910DPA52V14 | Definite Purpose Contactor Type DPA, 50A, 2-Poles, 24 VAC 50/60Hz | Square D by Schneider Electric

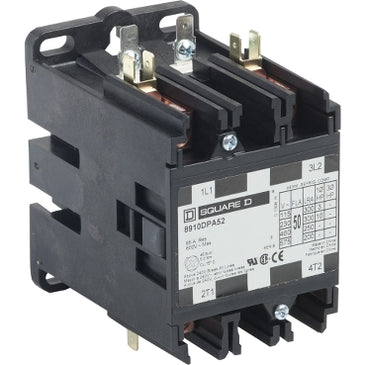

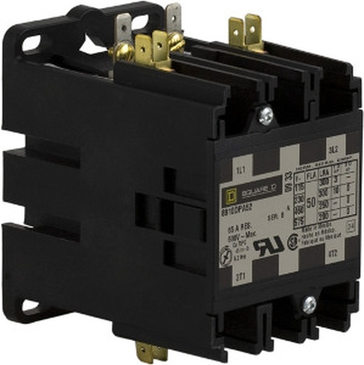

Square D | 8910DPA52V14
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8910DPA52V14

Documents and manuals

Square D 8910DPA52V14 Documents

Overview

Details for 8910DPA52V14

Definite Purpose Contactor Type DPA, 50A, 2-Poles, 24 VAC 50/60Hz

Definite Purpose Contactor:
  • Range of Product: DPA
  • Line Rated Current: 50A
  • Motor Power Horsepower: 3HP 115VAC, 10HP 230VAC
  • Number of Phases: 1-Phase
  • Number of Poles: 2-Pole
  • Control Circuit Voltage: 240 VAC 50/60Hz
  • Enclosure Rating: Open
  • Mounting: Panel
  • System Voltage: 600VAC
  • Locked Rotor Rated Current: 250A 460 VAC, 200A 575 VAC, 300A 277 VAC
  • Electrical Connection: Quick Connect Terminals, Box Lugs
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 50 ampere and a resistive rating of 65 amperes. It also has a 3 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 15 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.

Specifications

Product or Component Type
Definite Purpose Contactor
Line Rated Current
50 A
Number of Poles
2P
pole contact composition
2 NO
Range of Product
DPA
Maximum Horse Power Rating
3 hp 115 V AC;1 phase;10 hp 230 V AC;1 phase
locked rotor rated current
300 A 277 V AC;250 A 460 V AC;200 A 575 V AC
[Ue] rated operational voltage
600 V AC
[Uc] control circuit voltage
24 V AC 50/60 Hz
Phase
1 phase
Electrical Connection
Quick connect terminals;Box lugs
Product Certifications
UL Recognized;CSA
Category
21345-8910 DPA 5-(50 AMP)
Discount Schedule
CP1B
GTIN
785901080787
Returnability
Yes
Country of origin
CN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.30 in (5.842 cm)
Package 1 Width
3.80 in (9.652 cm)
Package 1 Length
4.40 in (11.176 cm)
Package 1 Weight
22.88 oz (648.637 g)
Unit Type of Package 2
CAR
Number of Units in Package 2
8
Package 2 Height
8.30 in (21.082 cm)
Package 2 Width
5.80 in (14.732 cm)
Package 2 Length
9.00 in (22.86 cm)
Package 2 Weight
11.77 lb(US) (5.339 kg)
Warranty
18 months
