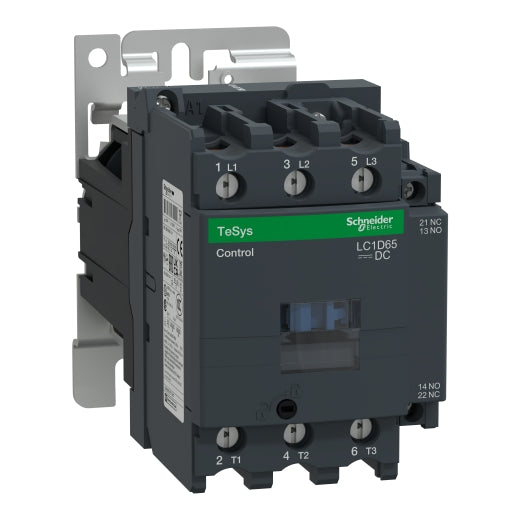

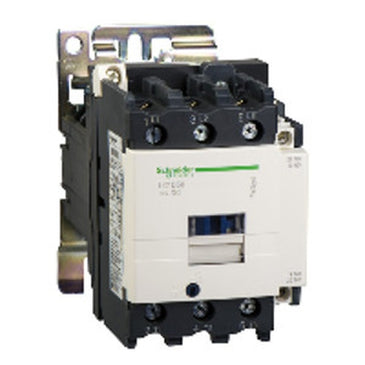

LC1D65BD | TeSys D Contactor, 3-Poles (3 NO), 65A, 24V DC Coil, Non-Reversing | Square D by Schneider Electric

Brand: Square DSKU: LC1D65BD

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1D65BD

Jump to: Overview & Specifications Reviews

Overview Details for LC1D65BD

TeSys D Contactor, 3-Poles (3 NO), 65A, 24V DC Coil, Non-Reversing

TeSys Deca contactor, 3 poles (3NO),for motor control applications 65A/690V,AC-3 37kW@690V. and for non-inductive load control applications up to 80A@60℃ in category AC-1. It provides a 24V DC coil,1NO/1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN), Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
Range of product: TeSys Deca
Product or component type: Contactor
device short name: LC1D
contactor application: Motor control
Motor control
Utilisation category: AC-3
AC-2
AC-1
AC-3e
AC-1
Poles description: 3P
[Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current: 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
65 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage: 24 V DC
Motor power kW: 30 kW at 380...400 V AC 50 Hz
37 kW at 500 V AC 50 Hz
37 kW at 660...690 V AC 50 Hz
18.5 kW at 220...230 V AC 50 Hz
30 kW at 415 V AC 50 Hz
37 kW at 1000 V AC 50 Hz (AC-3)
11 kW at 400 V AC 50 Hz (AC-4)
30 kW at 440 V AC 50 Hz (AC-3)
Motor power hp: 10 hp at 230/240 V AC 60 Hz for 1 phase motors
20 hp at 200/208 V AC 60 Hz for 3 phases motors
20 hp at 230/240 V AC 60 Hz for 3 phases motors
40 hp at 460/480 V AC 60 Hz for 3 phases motors
50 hp at 575/600 V AC 60 Hz for 3 phases motors
5 hp at 115 V AC 60 Hz for 1 phase motors
Compatibility code: LC1D
Pole contact composition: 3 NO
Protective cover: With
[Ith] conventional free air thermal current: 80 A (at 60 °C) for power circuit
10 A (at 60 °C) for control circuit
Irms rated making capacity: 1000 A at 440 V DC for power circuit conforming to IEC 60947
1000 A at 440 V for power circuit conforming to IEC 60947
250 A DC for control circuit conforming to IEC 60947-5-1
Rated breaking capacity: 1000 A at 440 V for power circuit conforming to IEC 60947
Associated fuse rating: 125 A gG at <= 690 V coordination type 2 for power circuit
160 A gG at <= 690 V coordination type 1 for power circuit conforming to IEC 60947-5-1
125 A gG at <= 690 V coordination type 1 for power circuit
10 A gG for control circuit conforming to IEC 60947-5-1
Power dissipation per pole: 6.4 W AC-1
4.2 W AC-3e
4.2 W AC-3
[Ui] rated insulation voltage: Control circuit: 600 V UL certified
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified conforming to IEC 60947-1
Control circuit: 690 V conforming to IEC 60947-1
Power circuit: 690 V conforming to IEC 60947-1
Power circuit: 1000 V CSA certified conforming to IEC 60947-4-1
Control circuit: 600 V CSA certified
Overvoltage category: III
[Uimp] rated impulse withstand voltage: 8 kV conforming to IEC 60947
Safety reliability level: B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Mechanical durability: 10000000 cycles
Control circuit type: DC wide range
Coil technology: Built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits: 0.75...1.25 Uc (-40…60 °C):operational DC
1...1.25 Uc (60…70 °C):operational DC
0.1...0.3 Uc (-40…70 °C):drop-out DC
Inrush power in W: 19 W (at 20 °C)
Hold-in power consumption in W: 7.4 W at 20 °C
Rated operational power in W: 48 W at 24 V DC-13 - electrical durability: 3000000 cycles - for control circuit
96 W at 24 V DC-13 - electrical durability: 1000000 cycles - for control circuit
14 W at 24 V DC-13 - electrical durability: 10000000 cycles - for control circuit
Operating time: 50 ms closing
20 ms opening
Time constant: 34 ms
Maximum operating rate: 3600 cyc/h 60 °C
Connections - terminals: Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw terminals 1 2.5…25 mm² - cable stiffness: rigid
Power circuit: screw terminals 2 2.5…16 mm² - cable stiffness: rigid without cable end
Power circuit: screw terminals 1 2.5…25 mm² - cable stiffness: flexible without cable end
Power circuit: screw terminals 2 2.5…16 mm² - cable stiffness: flexible without cable end
Power circuit: screw terminals 1 2.5…25 mm² - cable stiffness: flexible with cable end
Power circuit: screw terminals 2 2.5…10 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: rigid
Tightening torque: Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2
Power circuit: 5 N.m - on screw terminal - with screwdriver flat Ø 6 to Ø 8 mm
Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver pozidriv No 2
Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
auxiliary contact composition: 1 NO + 1 NC
Auxiliary contacts type: type mirror contact 1 NC conforming to IEC 60947-4-1
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Minimum switching voltage: 17 V for control circuit
Minimum switching current: 5 mA for control circuit
Insulation resistance: > 10 MOhm for control circuit
Non-overlap time: 1.5 ms on energisation between NC and NO contacts
1.5 ms on de-energisation between NC and NO contacts
Mounting support: Plate
Rail
Standards: IEC 60947-5-1
IEC 60947-4-1
EN 60947-4-1
UL 508
EN 60947-5-1
product certifications: GOST
LROS (Lloyds register of shipping)
DNV
CCC
CSA
GL
UL
RINA
UKCA
RINA
IP degree of protection: IP2X conforming to VDE 0106
IP2X conforming to IEC 60529
Climatic withstand: conforming to IACS E10 exposure to damp heat
Operating altitude: 0...3000 m
Fire resistance: 850 °C conforming to IEC 60695-2-1
Flame retardance: V1 conforming to UL 94
Mechanical robustness: Shocks contactor closed (15 Gn for 11 ms)
Vibrations contactor opened (2 Gn, 5...300 Hz)
Vibrations contactor closed (4 Gn, 5...300 Hz)
Shocks contactor opened (10 Gn for 11 ms)
Height: 127 mm
Width: 85 mm
Depth: 176 mm
Net weight: 2.185 kg
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 11.0 cm
Package 1 Width: 21.6 cm
Package 1 Length: 16.0 cm
Package 1 Weight: 2.268 kg
Unit Type of Package 2: S02
Number of Units in Package 2: 2
Package 2 Height: 15 cm
Package 2 Width: 30 cm
Package 2 Length: 40 cm
Package 2 Weight: 4.824 kg
Warranty: 18 months
