LC1D40G7 | TeSys D Contactor, 3-Poles (3 NO), 40A, 120V AC Coil, Non-Reversing | Square D by Schneider Electric
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Square DSKU: LC1D40G7

Web Price:

$312.86
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

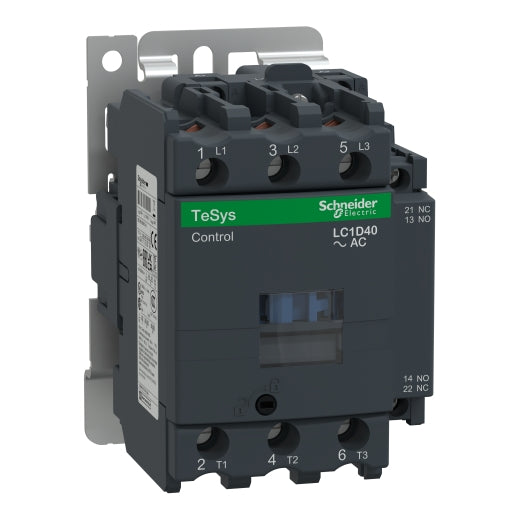

LC1D40G7 | TeSys D Contactor, 3-Poles (3 NO), 40A, 120V AC Coil, Non-Reversing | Square D by Schneider Electric

Square D | LC1D40G7

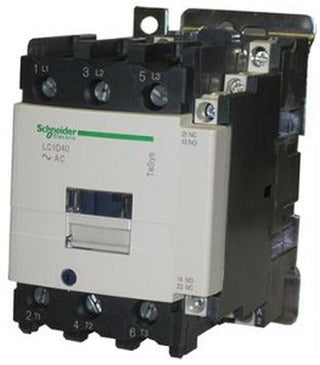

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC1D40G7

Documents and manuals

Square D LC1D40G7 Documents

Overview

Details for LC1D40G7

TeSys D Contactor, 3-Poles (3 NO), 40A, 120V AC Coil, Non-Reversing

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 40A/690V AC-3 (18.5kW@400V). It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (75mm width), DIN-rail mounting or screw fixing. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).
Range
TeSys
Range of product
TeSys Deca
Product or component type
Contactor
device short name
LC1D
contactor application
Resistive load
Motor control
Utilisation category
AC-3
AC-4
AC-1
AC-2
Poles description
3P
[Ue] rated operational voltage
Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current
60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
[Uc] control circuit voltage
120 V AC 50/60 Hz
Motor power kW
18.5 kW at 380...400 V AC 50/60 Hz (AC-3)
22 kW at 1000 V AC 50/60 Hz (AC-3)
22 kW at 415 V AC 50/60 Hz (AC-3)
22 kW at 440 V AC 50/60 Hz (AC-3)
22 kW at 500 V AC 50/60 Hz (AC-3)
30 kW at 660...690 V AC 50/60 Hz (AC-3)
11 kW at 220...230 V AC 50/60 Hz (AC-3)
9 kW at 400 V AC 50/60 Hz (AC-4)
Motor power hp
10 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to CSA
10 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to UL
10 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to CSA
10 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to UL
3 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA
3 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL
30 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to CSA
30 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to UL
30 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to CSA
30 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to UL
5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA
5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL
Compatibility code
LC1D
Pole contact composition
3 NO
Protective cover
With
[Ith] conventional free air thermal current
10 A (at 60 °C) for control circuit
60 A (at 60 °C) for power circuit
Irms rated making capacity
140 A AC for control circuit conforming to IEC 60947-5-1
800 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity
800 A at 440 V for power circuit conforming to IEC 60947
Associated fuse rating
10 A gG for control circuit conforming to IEC 60947-5-1
80 A gG at <= 690 V coordination type 1 for power circuit
80 A gG at <= 690 V coordination type 2 for power circuit
Average impedance
1.5 mOhm - Ith 60 A 50 Hz for power circuit
Power dissipation per pole
5.4 W AC-1
2.4 W AC-3
[Ui] rated insulation voltage
Control circuit: 600 V CSA certified
Control circuit: 600 V UL certified
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Control circuit: 690 V conforming to IEC 60947-1
Power circuit: 690 V conforming to IEC 60947-1
Overvoltage category
III
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947
Safety reliability level
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability
6000000 cycles
Control circuit type
AC at 50/60 Hz
Coil technology
Without built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits
0.3...0.6 Uc (60 °C):drop-out AC 50/60 Hz
0.8...1.1 Uc (60 °C):operational AC 50 Hz
0.85...1.1 Uc (60 °C):operational AC 60 Hz
Inrush power in VA
140 VA cos phi 0.75 (at 20 °C)
160 VA cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA
13 VA 50 Hz cos phi 0.3 (at 20 °C)
15 VA 60 Hz cos phi 0.3 (at 20 °C)
Heat dissipation
4…5 W at 50/60 Hz for control circuit
Operating time
12...26 ms closing
4...19 ms opening
Maximum operating rate
3600 cyc/h 60 °C
Connections - terminals
Control circuit: screw clamp terminal 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminal 2 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminal 1 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminal 2 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminal 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminal 2 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminal 1 2.5…35 mm² - cable stiffness: solid with cable end
Power circuit: screw clamp terminal 2 2.5…35 mm² - cable stiffness: solid with cable end
Power circuit: screw clamp terminal 1 2.5…35 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminal 2 2.5…25 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminal 1 2.5…35 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminal 2 2.5…35 mm² - cable stiffness: flexible with cable end
Tightening torque
Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2
Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 8 mm
auxiliary contact composition
1 NO + 1 NC
Auxiliary contacts type
type mirror contact 1 NC conforming to IEC 60947-4-1
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Minimum switching voltage
17 V for control circuit
Minimum switching current
5 mA for control circuit
Insulation resistance
> 10 MOhm for control circuit
Non-overlap time
1.5 ms on de-energisation between NC and NO contacts
1.5 ms on energisation between NC and NO contacts
Mounting support
Rail
Plate
Standards
UL 508
IEC 60947-4-1
CSA C22.2 No 14
EN 60947-4-1
IEC 60947-5-1
EN 60947-5-1
product certifications
UL
GL
RINA
LROS (Lloyds register of shipping)
CSA
BV
CCC
GOST
DNV
IP degree of protection
IP2X conforming to IEC 60529
IP2X conforming to VDE 0106
Climatic withstand
conforming to IACS E10 exposure to damp heat
Permissible ambient air temperature around the device
-5…60 °C
-40…70 °C at Uc
Operating altitude
3000 m without derating
Fire resistance
850 °C conforming to IEC 60695-2-1
Flame retardance
V1 conforming to UL 94
Mechanical robustness
Shocks contactor opened (10 Gn for 11 ms)
Shocks contactor closed (15 Gn for 11 ms)
Vibrations contactor opened (2 Gn, 5...300 Hz)
Vibrations contactor closed (4 Gn, 5...300 Hz)
Height
127 mm
Width
75 mm
Depth
119 mm
Net weight
1.4 kg
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
9.300 cm
Package 1 Width
13.500 cm
Package 1 Length
14.000 cm
Package 1 Weight
1.445 kg
Unit Type of Package 2
S02
Number of Units in Package 2
5
Package 2 Height
15.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
7.514 kg
Unit Type of Package 3
P06
Number of Units in Package 3
80
Package 3 Height
75.000 cm
Package 3 Width
60.000 cm
Package 3 Length
80.000 cm
Package 3 Weight
128.724 kg
Warranty
18 mont

Specifications

Item Number
LC1D40G7
Brand
Square D
category
Process Control & Safety
subcategory
Safety Controllers
Range
TeSys
Range of product
TeSys Deca
Product or component type
Contactor
device short name
LC1D
contactor application
Resistive load
Motor control
Utilisation category
AC-3
AC-4
AC-1
AC-2
Poles description
3P
[Ue] rated operational voltage
Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current
60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
[Uc] control circuit voltage
120 V AC 50/60 Hz
Motor power kW
18.5 kW at 380...400 V AC 50/60 Hz (AC-3)
22 kW at 1000 V AC 50/60 Hz (AC-3)
22 kW at 415 V AC 50/60 Hz (AC-3)
22 kW at 440 V AC 50/60 Hz (AC-3)
22 kW at 500 V AC 50/60 Hz (AC-3)
30 kW at 660...690 V AC 50/60 Hz (AC-3)
11 kW at 220...230 V AC 50/60 Hz (AC-3)
9 kW at 400 V AC 50/60 Hz (AC-4)
Motor power hp
10 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to CSA
10 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to UL
10 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to CSA
10 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to UL
3 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA
3 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL
30 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to CSA
30 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to UL
30 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to CSA
30 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to UL
5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA
5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL
Compatibility code
LC1D
Pole contact composition
3 NO
Protective cover
With
[Ith] conventional free air thermal current
10 A (at 60 °C) for control circuit
60 A (at 60 °C) for power circuit
Irms rated making capacity
140 A AC for control circuit conforming to IEC 60947-5-1
800 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity
800 A at 440 V for power circuit conforming to IEC 60947
Associated fuse rating
10 A gG for control circuit conforming to IEC 60947-5-1
80 A gG at <= 690 V coordination type 1 for power circuit
80 A gG at <= 690 V coordination type 2 for power circuit
Average impedance
1.5 mOhm - Ith 60 A 50 Hz for power circuit
Power dissipation per pole
5.4 W AC-1
2.4 W AC-3
[Ui] rated insulation voltage
Control circuit: 600 V CSA certified
Control circuit: 600 V UL certified
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Control circuit: 690 V conforming to IEC 60947-1
Power circuit: 690 V conforming to IEC 60947-1
Overvoltage category
III
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947
Safety reliability level
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability
6000000 cycles
Control circuit type
AC at 50/60 Hz
Coil technology
Without built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits
0.3...0.6 Uc (60 °C):drop-out AC 50/60 Hz
0.8...1.1 Uc (60 °C):operational AC 50 Hz
0.85...1.1 Uc (60 °C):operational AC 60 Hz
Inrush power in VA
140 VA cos phi 0.75 (at 20 °C)
160 VA cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA
13 VA 50 Hz cos phi 0.3 (at 20 °C)
15 VA 60 Hz cos phi 0.3 (at 20 °C)
Heat dissipation
4…5 W at 50/60 Hz for control circuit
Operating time
12...26 ms closing
4...19 ms opening
Maximum operating rate
3600 cyc/h 60 °C
Connections - terminals
Control circuit: screw clamp terminal 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminal 2 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminal 1 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminal 2 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminal 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminal 2 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminal 1 2.5…35 mm² - cable stiffness: solid with cable end
Power circuit: screw clamp terminal 2 2.5…35 mm² - cable stiffness: solid with cable end
Power circuit: screw clamp terminal 1 2.5…35 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminal 2 2.5…25 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminal 1 2.5…35 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminal 2 2.5…35 mm² - cable stiffness: flexible with cable end
Tightening torque
Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2
Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 8 mm
auxiliary contact composition
1 NO + 1 NC
Auxiliary contacts type
type mirror contact 1 NC conforming to IEC 60947-4-1
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Minimum switching voltage
17 V for control circuit
Minimum switching current
5 mA for control circuit
Insulation resistance
> 10 MOhm for control circuit
Non-overlap time
1.5 ms on de-energisation between NC and NO contacts
1.5 ms on energisation between NC and NO contacts
Mounting support
Rail
Plate
Standards
UL 508
IEC 60947-4-1
CSA C22.2 No 14
EN 60947-4-1
IEC 60947-5-1
EN 60947-5-1
product certifications
UL
GL
RINA
LROS (Lloyds register of shipping)
CSA
BV
CCC
GOST
DNV
IP degree of protection
IP2X conforming to IEC 60529
IP2X conforming to VDE 0106
Climatic withstand
conforming to IACS E10 exposure to damp heat
Permissible ambient air temperature around the device
-5…60 °C
-40…70 °C at Uc
Operating altitude
3000 m without derating
Fire resistance
850 °C conforming to IEC 60695-2-1
Flame retardance
V1 conforming to UL 94
Mechanical robustness
Shocks contactor opened (10 Gn for 11 ms)
Shocks contactor closed (15 Gn for 11 ms)
Vibrations contactor opened (2 Gn, 5...300 Hz)
Vibrations contactor closed (4 Gn, 5...300 Hz)
Height
127 mm
Width
75 mm
Depth
119 mm
Net weight
1.4 kg
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
9.300 cm
Package 1 Width
13.500 cm
Package 1 Length
14.000 cm
Package 1 Weight
1.445 kg
Unit Type of Package 2
S02
Number of Units in Package 2
5
Package 2 Height
15.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
7.514 kg
Unit Type of Package 3
P06
Number of Units in Package 3
80
Package 3 Height
75.000 cm
Package 3 Width
60.000 cm
Package 3 Length
80.000 cm
Package 3 Weight
128.724 kg
Warranty
18 mont
Range
TeSys
Range of product
TeSys Deca
Product or component type
Contactor
device short name
LC1D
contactor application
Resistive load
Motor control
Utilisation category
AC-3
AC-4
AC-1
AC-2
Poles description
3P
[Ue] rated operational voltage
Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current
60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
[Uc] control circuit voltage
120 V AC 50/60 Hz
Motor power kW
18.5 kW at 380...400 V AC 50/60 Hz (AC-3)
22 kW at 1000 V AC 50/60 Hz (AC-3)
22 kW at 415 V AC 50/60 Hz (AC-3)
22 kW at 440 V AC 50/60 Hz (AC-3)
22 kW at 500 V AC 50/60 Hz (AC-3)
30 kW at 660...690 V AC 50/60 Hz (AC-3)
11 kW at 220...230 V AC 50/60 Hz (AC-3)
9 kW at 400 V AC 50/60 Hz (AC-4)
Motor power hp
10 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to CSA
10 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to UL
10 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to CSA
10 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to UL
3 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA
3 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL
30 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to CSA
30 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to UL
30 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to CSA
30 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to UL
5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA
5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL
Compatibility code
LC1D
Pole contact composition
3 NO
Protective cover
With
[Ith] conventional free air thermal current
10 A (at 60 °C) for control circuit
60 A (at 60 °C) for power circuit
Irms rated making capacity
140 A AC for control circuit conforming to IEC 60947-5-1
800 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity
800 A at 440 V for power circuit conforming to IEC 60947
Associated fuse rating
10 A gG for control circuit conforming to IEC 60947-5-1
80 A gG at <= 690 V coordination type 1 for power circuit
80 A gG at <= 690 V coordination type 2 for power circuit
Average impedance
1.5 mOhm - Ith 60 A 50 Hz for power circuit
Power dissipation per pole
5.4 W AC-1
2.4 W AC-3
[Ui] rated insulation voltage
Control circuit: 600 V CSA certified
Control circuit: 600 V UL certified
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Control circuit: 690 V conforming to IEC 60947-1
Power circuit: 690 V conforming to IEC 60947-1
Overvoltage category
III
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947
Safety reliability level
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability
6000000 cycles
Control circuit type
AC at 50/60 Hz
Coil technology
Without built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits
0.3...0.6 Uc (60 °C):drop-out AC 50/60 Hz
0.8...1.1 Uc (60 °C):operational AC 50 Hz
0.85...1.1 Uc (60 °C):operational AC 60 Hz
Inrush power in VA
140 VA cos phi 0.75 (at 20 °C)
160 VA cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA
13 VA 50 Hz cos phi 0.3 (at 20 °C)
15 VA 60 Hz cos phi 0.3 (at 20 °C)
Heat dissipation
4…5 W at 50/60 Hz for control circuit
Operating time
12...26 ms closing
4...19 ms opening
Maximum operating rate
3600 cyc/h 60 °C
Connections - terminals
Control circuit: screw clamp terminal 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminal 2 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminal 1 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminal 2 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminal 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminal 2 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminal 1 2.5…35 mm² - cable stiffness: solid with cable end
Power circuit: screw clamp terminal 2 2.5…35 mm² - cable stiffness: solid with cable end
Power circuit: screw clamp terminal 1 2.5…35 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminal 2 2.5…25 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminal 1 2.5…35 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminal 2 2.5…35 mm² - cable stiffness: flexible with cable end
Tightening torque
Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2
Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 8 mm
auxiliary contact composition
1 NO + 1 NC
Auxiliary contacts type
type mirror contact 1 NC conforming to IEC 60947-4-1
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Minimum switching voltage
17 V for control circuit
Minimum switching current
5 mA for control circuit
Insulation resistance
> 10 MOhm for control circuit
Non-overlap time
1.5 ms on de-energisation between NC and NO contacts
1.5 ms on energisation between NC and NO contacts
Mounting support
Rail
Plate
Standards
UL 508
IEC 60947-4-1
CSA C22.2 No 14
EN 60947-4-1
IEC 60947-5-1
EN 60947-5-1
product certifications
UL
GL
RINA
LROS (Lloyds register of shipping)
CSA
BV
CCC
GOST
DNV
IP degree of protection
IP2X conforming to IEC 60529
IP2X conforming to VDE 0106
Climatic withstand
conforming to IACS E10 exposure to damp heat
Permissible ambient air temperature around the device
-5…60 °C
-40…70 °C at Uc
Operating altitude
3000 m without derating
Fire resistance
850 °C conforming to IEC 60695-2-1
Flame retardance
V1 conforming to UL 94
Mechanical robustness
Shocks contactor opened (10 Gn for 11 ms)
Shocks contactor closed (15 Gn for 11 ms)
Vibrations contactor opened (2 Gn, 5...300 Hz)
Vibrations contactor closed (4 Gn, 5...300 Hz)
Height
127 mm
Width
75 mm
Depth
119 mm
Net weight
1.4 kg
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
9.300 cm
Package 1 Width
13.500 cm
Package 1 Length
14.000 cm
Package 1 Weight
1.445 kg
Unit Type of Package 2
S02
Number of Units in Package 2
5
Package 2 Height
15.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
7.514 kg
Unit Type of Package 3
P06
Number of Units in Package 3
80
Package 3 Height
75.000 cm
Package 3 Width
60.000 cm
Package 3 Length
80.000 cm
Package 3 Weight
128.724 kg
Warranty
18 mont

Reviews

People Also Searched
LC1D40G7
Square D LC1D40G7
LC1D40G7 price
Square D LC1D40G7 price
