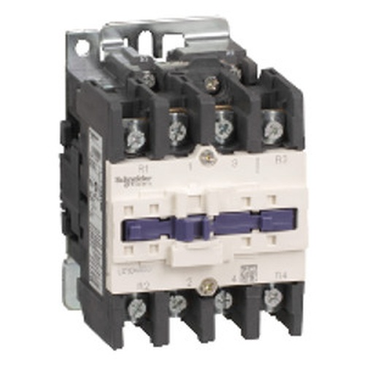

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC1D40008G6

Documents and manuals

Square D LC1D40008G6 Documents

Overview

Details for LC1D40008G6

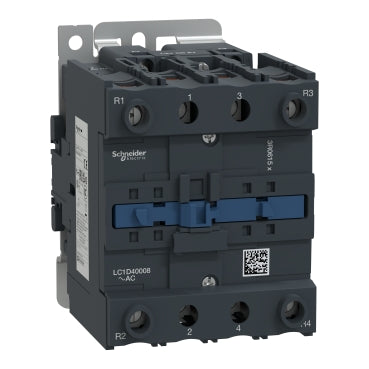

TeSys D Contactor, 4-Poles (2 NO + 2 NC), 60A, 120V AC Coil, Non-Reversing

TeSys D Contactor
  • Number of Poles: 4-Poles
  • Pole Contact Composition: 2 NO + 2 NC
  • Rated Operational Current: 60A
  • Control Circuit Voltage: 120V AC 50/60 Hz
  • Non-Reversing TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 60A resistive load rating. Contactor is supplied with a 120 VAC 60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 4.92 inches deep. It weighs 3.17 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
  • Specifications

    range
    TeSys
    Range of Product
    TeSys D
    Product or Component Type
    Contactor
    device short name
    LC1D
    contactor application
    Resistive load
    utilisation category
    AC-1
    poles description
    4P
    [Ue] rated operational voltage
    Power circuit <= 690 V AC 25...400 Hz;Power circuit <= 300 V DC
    [Ie] rated operational current
    60 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
    [Uc] control circuit voltage
    120 V AC 60 Hz
    compatibility code
    LC1D
    pole contact composition
    2 NO + 2 NC
    contact compatibility
    M1
    protective cover
    Without
    [Ith] conventional free air thermal current
    60 A 140 °F (60 °C) power circuit
    Irms rated making capacity
    800 A 440 V power circuit IEC 60947
    rated breaking capacity
    800 A 440 V power circuit IEC 60947
    [Icw] rated short-time withstand current
    320 A 104 °F (40 °C) - 10 s power circuit;720 A 104 °F (40 °C) - 1 s power circuit;72 A 104 °F (40 °C) - 10 min power circuit;165 A 104 °F (40 °C) - 1 min power circuit
    associated fuse rating
    80 A gG <= 690 V type 1 power circuit;80 A gG <= 690 V type 2 power circuit
    average impedance
    1.5 mOhm - Ith 60 A 50 Hz power circuit
    power dissipation per pole
    5.4 W AC-1
    [Ui] rated insulation voltage
    Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
    overvoltage category
    III
    pollution degree
    3
    [Uimp] rated impulse withstand voltage
    6 kV IEC 60947
    safety reliability level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
    mechanical durability
    6 Mcycles
    electrical durability
    1.4 Mcycles 60 A AC-1 <= 440 V
    control circuit type
    AC 60 Hz
    coil technology
    Without built-in suppressor module
    control circuit voltage limits
    0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz;0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 60 Hz;1...1.1 Uc 140…158 °F (60…70 °C) operational AC 60 Hz
    inrush power in VA
    140 VA 60 Hz 0.75 68 °F (20 °C))
    hold-in power consumption in VA
    13 VA 60 Hz 0.3 68 °F (20 °C))
    heat dissipation
    4…5 W 60 Hz
    operating time
    4...19 ms opening;12...26 ms closing
    maximum operating rate
    3600 cyc/h 140 °F (60 °C)
    connections - terminals
    Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid without cable end;Power circuit screw clamp terminals 1 0.00…0.05 in² (1…35 mm²) flexible without cable end;Power circuit screw clamp terminals 2 0.00…0.04 in² (1…25 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.00…0.05 in² (1…35 mm²) flexible with cable end;Power circuit screw clamp terminals 2 0.00…0.04 in² (1…25 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.00…0.05 in² (1…35 mm²) solid without cable end;Power circuit screw clamp terminals 2 0.00…0.04 in² (1…25 mm²) solid without cable end
    tightening torque
    Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2;Power circuit 70.81 lbf.in (8 N.m) screw clamp terminals 0.04…0.05 in² (25…35 mm²) hexagonal 0.16 in (4 mm);Power circuit 44.25 lbf.in (5 N.m) screw clamp terminals 0.00…0.04 in² (1…25 mm²) hexagonal 0.16 in (4 mm);Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2
    Mounting Support
    Plate;Rail
    standards
    CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508
    Product Certifications
    CSA;CCC;BV;GL;DNV;UL;GOST;RINA;LROS (Lloyds register of shipping)
    IP degree of protection
    IP20 front face IEC 60529
    protective treatment
    THIEC 60068-2-30
    climatic withstand
    IACS E10 exposure to damp heat
    permissible ambient air temperature around the device
    -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
    operating altitude
    0...9842.52 ft (0...3000 m)
    fire resistance
    1562 °F (850 °C) IEC 60695-2-1
    flame retardance
    V1 conforming to UL 94
    mechanical robustness
    Shocks contactor open 8 Gn for 11 ms);Shocks contactor closed 10 Gn for 11 ms);Vibrations contactor opened 2 Gn;5...300 Hz);Vibrations contactor closed 4 Gn;5...300 Hz)
    Height
    5.00 in (127 mm)
    Width
    3.35 in (85 mm)
    Depth
    4.92 in (125 mm)
    Net Weight
    3.17 lb(US) (1.44 kg)
    Category
    22357-CTR;TESYS D;OPEN;40-65A AC
    Discount Schedule
    I12
    GTIN
    3389110070309
    Returnability
    Yes
    Country of origin
    CZ
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Height
    5.12 in (13.0 cm)
    Package 1 Width
    3.74 in (9.5 cm)
    Package 1 Length
    5.31 in (13.5 cm)
    Package 1 Weight
    3.27 lb(US) (1.483 kg)
    Warranty
    18 months
