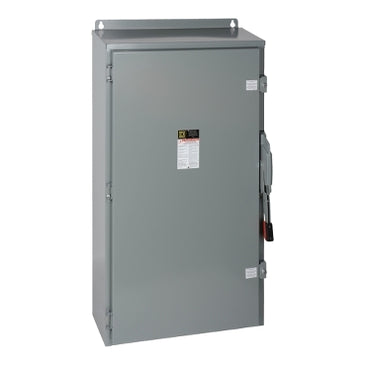

H367AWK | SWITCH NEMA 12 600V 800A | Square D by Schneider Electric

Brand: Square DSKU: H367AWK

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for H367AWK

SWITCH NEMA 12 600V 800A

Product: Single Throw Safety Switch
Duty Rating: Heavy duty
Device Application: Heavy application
Disconnect Type: Fusible disconnect
Factory Installed Neutral: None
Phase: 3 phase
Number of Poles: 3
Current Rating: 800 A
Voltage Rating: 600 V AC/DC
Enclosure Rating: NEMA 3R/12 galvannealed steel
Motor power hp: 200 hp at 480 V AC 50-60 Hz for 3 phase motors;500 hp at 480 V AC 50-60 Hz for 3 phase motors;250 hp at 600 V AC 50-60 Hz for 3 phase motors;500 hp at 600 V AC 50-60 Hz for 3 phase motors;50 hp at 600 V DC
Short Circuit Current Rating: 200 kA maximum L
fuse type: L
Mounting Type: Surface
Electrical Connection: Lugs
wiring configuration: 3-wire
Wire Size: AWG 3/0...750 kcmil copper or aluminium
tightening torque: 375 lbf.in (42.37 N.m) 0.13…0.59 in² (85.01…380 mm²) (AWG 3/0...750 kcmil)
Depth: 17.75 in (450.85 mm)
Width: 36.62 in (930.15 mm)
Height: 69.13 in (1755.90 mm)
Net Weight: 369.94 lb(US) (167.8 kg)
Certifications: UL listed file E2875
Category: 00155-H&HU SW;NEMA12;400-1200A
Discount Schedule: DE1
GTIN: 785901077022
Returnability: No
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Warranty: 18 months
