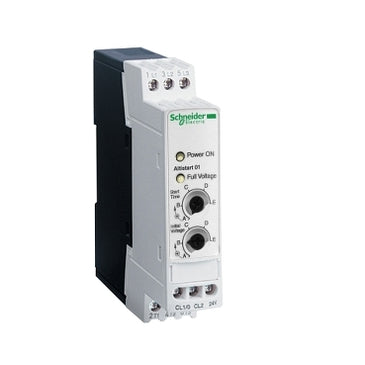

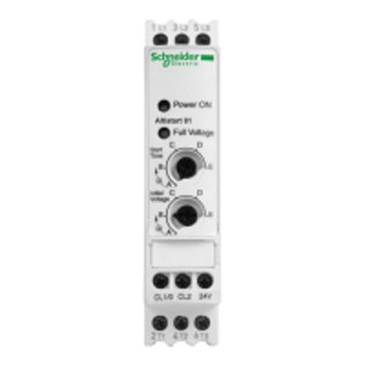

ATS01N106FT | Altistart 01 Soft Start (ATS01), for Asynchronous Motor, 6A, 110-480V, 0.5-3 HP, 0.75-3.0 kW, Single-phase, Integrated Bypass, w/Heat Sink | Square D

Brand: Square DSKU: ATS01N106FT

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ATS01N106FT

Jump to: Overview & Specifications Reviews

Overview Details for ATS01N106FT

Altistart 01 Soft Start (ATS01), for Asynchronous Motor, 6A, 110-480V, 0.5-3 HP, 0.75-3.0 kW, Single-phase, Integrated Bypass, w/Heat Sink

Altistart 01 Soft Start (ATS01)

For Asynchronous Motor
lcL Starter Rating: 6A
US Rated Supply Voltage: 110-480V
Motor Power Horsepower: 0.5-3 HP
Motor Power kW: 0.75-3.0 kW
Network Number of Phases: Single-phase
Integrated Bypass
Assembly Style: with Heat Sink

This Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 6A. This Altistart 01 can be used for a motor rated power up to 3kW or 3hp for 3-phase (110V to 480V AC) and up to 0.75kW for single phase (110V to 230V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 22.5mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Specifications

Range of Product: Altistart 01
Product or Component Type: Soft starter
product destination: Asynchronous motors
Product Specific Application: Simple machine
device short name: ATS01
Phase: 1 phase
[Us] rated supply voltage: 110...480 V - 10...10 %
motor power kW: 3 kW;3 phase 400 V;0.75 kW;3 phase 230 V;1.1 kW;3 phase 230 V;2.2 kW;3 phase 400 V;0.75 kW;1 phase 230 V
Maximum Horse Power Rating: 1 hp;3 phase 230 V;2 hp;3 phase 460 V;3 hp;3 phase 460 V;0.5 hp;3 phase 210 V;1.5 hp;3 phase 230 V
IcL starter rating: 6 A
utilisation category: AC-53B EN/IEC 60947-4-2
current consumption: 30 A at nominal load
type of start: Start with voltage ramp
power dissipation in W: 1 W at full load and at end of starting;31 W in transient state
assembly style: With heat sink
Function Available: Integrated bypass
supply voltage limits: 99…528 V
supply frequency: 50...60 Hz - 5...5 %
Network Frequency: 47.5...63 Hz
output voltage: <= power supply voltage
[Uc] control circuit voltage: 110 V AC +/- 10 % 30 mA;24 V AC/DC +/- 10 % 25 mA;240 V AC +/- 10 % 65 mA
starting time: 1 s / 100;5 s / 20;Adjustable from 1 to 5 s
starting torque: 30...80 % of starting torque of motor connected directly on the line supply
discrete output current: 2 A DC-13;3 A AC-15
tightening torque: 7.08 lbf.in (0.8 N.m)
electrical connection: Cage type connector - rigid 1 2.5 mm² AWG 14 control circuit;Cage type connector - rigid 1 2.5 mm² AWG 14 power circuit;Cage type connector - rigid 2 1 mm² AWG 17 control circuit;Cage type connector - rigid 2 1 mm² AWG 17 power circuit;Cage type connector - flexible with cable end 1 2.5 mm² AWG 14 control circuit;Cage type connector - flexible with cable end 1 2.5 mm² AWG 14 power circuit;Cage type connector - flexible without cable end 1 2.5 mm² AWG 14 control circuit;Cage type connector - flexible without cable end 1 2.5 mm² AWG 14 power circuit;Cage type connector - flexible with cable end 2 0.75 mm² AWG 18 control circuit;Cage type connector - flexible with cable end 2 0.75 mm² AWG 18 power circuit;Cage type connector - flexible without cable end 2 1 mm² AWG 17 control circuit;Cage type connector - flexible without cable end 2 1 mm² AWG 17 power circuit
Marking: CE
operating position: Vertical +/- 10 degree
Height: 3.94 in (100 mm)
Width: 0.91 in (23 mm)
Depth: 3.94 in (100 mm)
Net Weight: 0.35 lb(US) (0.16 kg)
compatibility code: ATS01N1
Motor power range AC-3: 0.55…1 kW 200…240 V 3 phase;1.1…2 kW 380…440 V 3 phase;0.55…1 kW 200…240 V 1 phase;1.1…2 kW 200…240 V 3 phase;2.2…3 kW 380…440 V 3 phase
motor starter type: Soft starter
electromagnetic compatibility: Conducted and radiated emissions level B CISPR 11;Conducted and radiated emissions level B IEC 60947-4-2;Damped oscillating waves level 3 IEC 61000-4-12;Electrostatic discharge level 3 IEC 61000-4-2;EMC immunity EN 50082-1;EMC immunity EN 50082-2;Harmonics IEC 1000-3-2;Harmonics IEC 1000-3-4;Immunity to conducted interference caused by radio-electrical fields level 3 IEC 61000-4-6;Immunity to electrical transients level 4 IEC 61000-4-4;Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3;Micro-cuts and voltage fluctuation IEC 61000-4-11;Voltage/current impulse level 3 IEC 61000-4-5
Standards: EN/IEC 60947-4-2
Product Certifications: C-tick;CCC;CSA;B44.1-96/ASME A17.5 for starter wired to the motor delta terminal;UL;GOST
IP Degree of Protection: IP20
pollution degree: 2 EN/IEC 60947-4-2
vibration resistance: 1 gn 13…150 Hz)EN/IEC 60068-2-6;1.5 mm peak to peak 3…13 Hz)EN/IEC 60068-2-6
shock resistance: 15 gn 11 ms EN/IEC 60068-2-27
relative humidity: 5…95 % without condensation or dripping water EN/IEC 60068-2-3
ambient air temperature for operation: 14…104 °F (-10…40 °C) without derating);104…122 °F (40…50 °C) with current derating of 2 % per °C)
ambient air temperature for storage: -13…158 °F (-25…70 °C) EN/IEC 60947-4-2
operating altitude: <= 3280.84 ft (1000 m) without derating;> 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
Category: 22392-ATSU01/ATS01 LOW HP SOFT STARTERS
Discount Schedule: I11
GTIN: 3389110667141
Returnability: Yes
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.98 in (2.5 cm)
Package 1 Width: 4.06 in (10.3 cm)
Package 1 Length: 4.13 in (10.5 cm)
Package 1 Weight: 6.28 oz (178.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 36
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 14.80 lb(US) (6.715 kg)
Warranty: 18 months
