8538SCASP3 | NEMA Combination Starter, Type S, 30A fusible disconnect, Size 1, 27A, melting alloy overload, 120 VAC coil, NEMA 3R/12 | Square D by Schneider Electric
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!

Web Price:

$1,152.39
Availability: IN STOCK

Contact us for price breaks on large quantities!

This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs. Shipping and Returns Terms
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

Speak With a Technical Expert

Image for Technical Expert

Documents: 8538SCASP3

8538SCASP3 | NEMA Combination Starter, Type S, 30A fusible disconnect, Size 1, 27A, melting alloy overload, 120 VAC coil, NEMA 3R/12 | Square D by Schneider Electric

Brand: Square DSKU: 8538SCASP3
Square D | 8538SCASP3
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8538SCASP3

Overview Details for 8538SCASP3

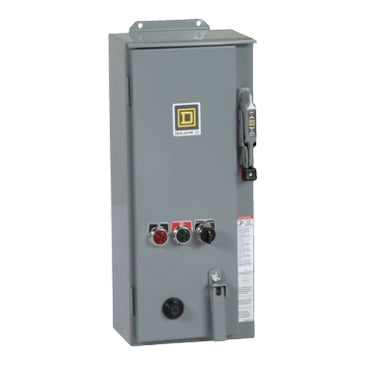

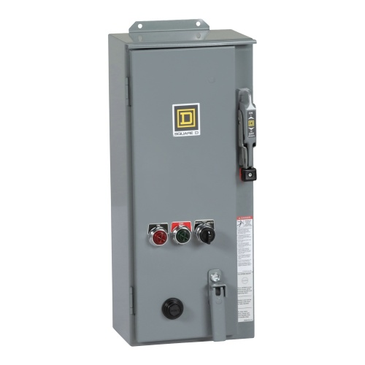

NEMA Combination Starter, Type S, 30A fusible disconnect, Size 1, 27A, melting alloy overload, 120 VAC coil, NEMA 3R/12

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of up to 10 HP at 480 and 600 VAC three phase. Combination starter has 30 ampere Class H and K fuse clips. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 dusttight enclosure is used to protect this starter. Enclosure is 24.0 inches tall, 8.34 inches wide and 9.5 inches deep. A wide variety of accessories are available for Type S starters. This combination starters is supplied with a HAND/OFF/AUTO selector switch, a red LED pilot light and a green LED pilot light, auxiliary contacts and an interlock on disconnect. Type S combination starters are UL listed and CSA certified.

Specifications

Product
Combination Starter
Type
S
Control Circuit Type
Separate control circuit
Control Circuit Voltage
110 V AC 50 Hz;120 V AC 60 Hz
Starter Type
Non reversing
Line Rated Current
27 A
Number of Poles
3P
Horsepower Rating
10 hp 460 V AC;3 phase;10 hp 575 V AC;3 phase
Maximum Voltage Rating
600 V AC
Control Units
Selector switch HAND-OFF-AUTO)
Pilot Light
Red indicator on LED;Green indicator off LED
Auxiliary Contacts
2 NO + 2 NC
thermal overload type
Melting alloy 3
Disconnect Type
Fusible disconnect switch H and K;30 A;electrical SPDT
NEMA size
1
Height
24 in (609.60 mm)
Depth
8.34 in (211.84 mm)
Width
9.5 in (241.30 mm)
Handle Swing
3.25 in (82.55 mm)
Enclosure Type
NEMA 12 painted sheet steel with external reset
Product Certifications
CSA;UL Listed
Category
21213-8538;39 SC;SD(NOT S*R;T;W)
Discount Schedule
CP1
GTIN
785901828457
Number of Units in Package 1
1
Package 1 Weight
38.85 lb(US) (17.62 kg)
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Package 1 Height
10.98 in (27.9 cm)
Package 1 Width
13.11 in (33.3 cm)
Package 1 Length
28.90 in (73.4 cm)
Warranty
18 months
