9080LBA364101 | POWER DISTRIBUTION BLOCK 600V 420A | Square D by Schneider Electric

Square D | 9080LBA364101

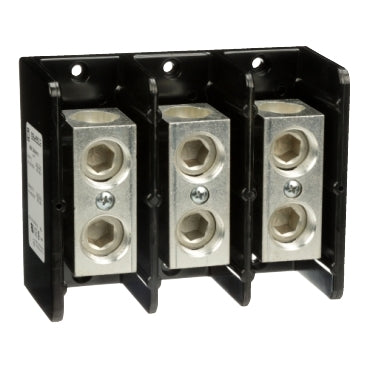

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9080LBA364101

Documents and manuals

Square D 9080LBA364101 Documents

Overview

Details for 9080LBA364101

POWER DISTRIBUTION BLOCK 600V 420A

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one #4 to 600 kcmil copper or aluminum wire. The load side lug is rated to accept one #4 to 600 kcmil copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 420 amperes with copper wire and 340 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Range
9080LB
Product
Power Distribution Block
Current Rating
420 A copper;340 A aluminium
Voltage Rating
600 V AC/DC
Mounting Type
Surface mount
number of poles
3
Terminals per Pole
1 line;1 load
Wire Size
Line 1;AWG 4...600 kcmil;copper or aluminium;Load 1;AWG 4...600 kcmil;copper or aluminium
Electrical Connection
Tin plated aluminium lugs
SCCR
100 kA UL 508 A
Ambient air temperature for operation
-40…302 °F (-40…150 °C)
Block Material
Phenolic block
Terminal Tightening Torque
Line lug 500 lbf.in (56.49 N.m) AWG 4...600 kcmil copper or aluminium;Load lug 500 lbf.in (56.49 N.m) AWG 4...600 kcmil copper or aluminium
wire stripping length
Line 1.38 in (35.05 mm);Load 1.38 in (35.05 mm)
Height
4.75 in (120.65 mm)
Width
2.28 in (57.91 mm)
Depth
2.91 in (73.91 mm)
End Barrier
9080LB43
Certifications
CE;UL recognized E60616 CCN XCFR2;CSA file 70361 class 6228 01
Category
21711-9080 LB
Discount Schedule
CP1
GTIN
785901097495
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.90 in (9.906 cm)
Package 1 Width
5.10 in (12.954 cm)
Package 1 Length
6.20 in (15.748 cm)
Package 1 Weight
2.55 lb(US) (1.157 kg)
Warranty
18 months
