9080LBA365208 | POWER DISTRIBUTION BLOCK 600V 760A | Square D
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Square DSKU: 9080LBA365208

Web Price:

$167.21
Availability: IN STOCK
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

9080LBA365208 | POWER DISTRIBUTION BLOCK 600V 760A | Square D

Square D | 9080LBA365208
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9080LBA365208

Documents and manuals

Square D 9080LBA365208 Documents

Overview

Details for 9080LBA365208

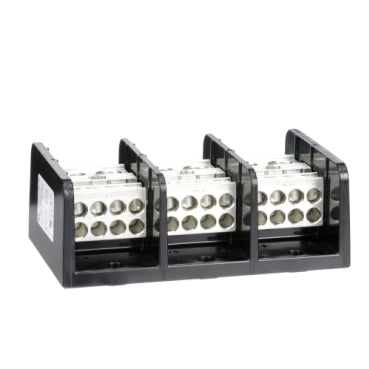

POWER DISTRIBUTION BLOCK 600V 760A

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and eight lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 500 kcmil copper or aluminum wire. The load side lugs are rated to accept one #14 to 2/0 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 760 amperes with copper wire and 620 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Range
9080LB
Product
Power Distribution Block
Current Rating
760 A copper;620 A aluminium
Voltage Rating
600 V AC/DC
Mounting Type
Surface mount
number of poles
3
Terminals per Pole
2 line;8 load
Wire Size
Line 2;AWG 4...500 kcmil;copper or aluminium;Load 8;AWG 14...AWG 2/0;copper or aluminium
Electrical Connection
Tin plated aluminium lugs
SCCR
100 kA UL 508 A
Ambient Air Temperature for Operation
-40…302 °F (-40…150 °C)
Block Material
Phenolic block
Terminal Tightening Torque
Load lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium;Load lug 120 lbf.in (13.56 N.m) AWG 6...AWG 2/0 copper or aluminium;Load lug 35 lbf.in (3.95 N.m) AWG 14...AWG 10 copper or aluminium;Line lug 375 lbf.in (42.37 N.m) AWG 4...500 kcmil copper or aluminium
wire stripping length
Load 0.75 in (19.05 mm) top;Line 1.13 in (28.70 mm);Load 1.38 in (35.05 mm) bottom
Height
5.5 in (139.70 mm)
Width
8.54 in (216.92 mm)
Depth
3.13 in (79.50 mm)
End Barrier
9080LB53
Net Weight
3.66 lb(US) (1.66 kg)
Certifications
UL recognized E60616 CCN XCFR2;CSA file 70361 class 6228 01;CE
Category
21711-9080 LB
Discount Schedule
CP1
GTIN
785901097563
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.50 in (8.89 cm)
Package 1 Width
6.00 in (15.24 cm)
Package 1 Length
8.70 in (22.098 cm)
Package 1 Weight
3.66 lb(US) (1.66 kg)
Unit Type of Package 2
CAR
Number of Units in Package 2
6
Package 2 Height
12.70 in (32.258 cm)
Package 2 Width
9.60 in (24.384 cm)
Package 2 Length
13.40 in (34.036 cm)
Package 2 Weight
22.57 lb(US) (10.238 kg)
Warranty
18 months
