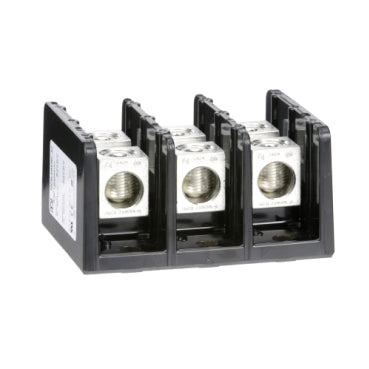

9080LBA363101 | POWER DISTRIBUTION BLOCK 600V 310A | Square D by Schneider Electric

Brand: Square DSKU: 9080LBA363101

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9080LBA363101

Jump to: Overview & Specifications Reviews

Overview Details for 9080LBA363101

POWER DISTRIBUTION BLOCK 600V 310A

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one #6 to 350 kcmil copper or aluminum wire. The load side lug is rated to accept one #6 to 350 kcmil copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 310 amperes with copper wire and 250 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Range: 9080LB
Product: Power Distribution Block
Current Rating: 310 A copper;250 A aluminium
Voltage Rating: 600 V AC/DC
Mounting Type: Surface mount
number of poles: 3
Terminals per Pole: 1 line;1 load
Wire Size: Line 1;AWG 6...350 kcmil;copper or aluminium;Load 1;AWG 6...350 kcmil;copper or aluminium
Electrical Connection: Tin plated aluminium lugs
SCCR: 100 kA UL 508 A
Ambient air temperature for operation: -40…302 °F (-40…150 °C)
Block Material: Phenolic block
Terminal Tightening Torque: Line lug 275 lbf.in (31.07 N.m) AWG 6...350 kcmil copper or aluminium;Load lug 275 lbf.in (31.07 N.m) AWG 6...350 kcmil copper or aluminium
wire stripping length: Line 1.06 in (26.92 mm);Load 1.06 in (26.92 mm)
Height: 3.38 in (85.85 mm)
Width: 1.94 in (49.28 mm)
Depth: 2.61 in (66.29 mm)
End Barrier: 9080LB33
Net Weight: 1.50 lb(US) (0.68 kg)
Certifications: UL recognized E60616 CCN XCFR2;CE;CSA file 70361 class 6228 01
Category: 21711-9080 LB
Discount Schedule: CP1
GTIN: 785901097464
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.00 in (7.62 cm)
Package 1 Width: 4.30 in (10.922 cm)
Package 1 Length: 5.20 in (13.208 cm)
Package 1 Weight: 24.00 oz (680.389 g)
Warranty: 18 months
