9080LBA365202 | POWER DISTRIBUTION BLOCK 600V 620A | Square D by Schneider Electric
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Square DSKU: 9080LBA365202

Web Price:

$131.84
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

9080LBA365202 | POWER DISTRIBUTION BLOCK 600V 620A | Square D by Schneider Electric

Square D | 9080LBA365202
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9080LBA365202

Documents and manuals

Square D 9080LBA365202 Documents

Overview

Details for 9080LBA365202

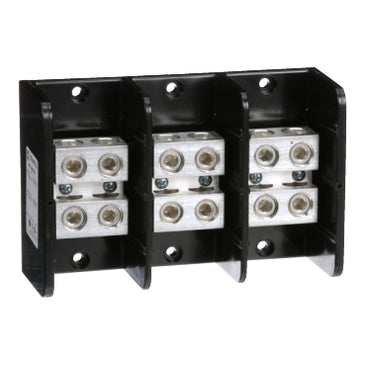

POWER DISTRIBUTION BLOCK 600V 620A

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and two lug openings on the load (branch) side. The line side lug is rated to accept one #4 to 350 kcmil copper or aluminum wire. The load side lugs are rated to accept one #4 to 350 kcmil copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 620 amperes with copper wire and 500 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Range
9080LB
Product
Power Distribution Block
Current Rating
620 A copper;500 A aluminium
Voltage Rating
600 V AC/DC
Mounting Type
Surface mount
number of poles
3
Terminals per Pole
2 line;2 load
Wire Size
Line 2;AWG 6...350 kcmil;copper or aluminium;Load 2;AWG 6...350 kcmil;copper or aluminium
Electrical Connection
Tin plated aluminium lugs
SCCR
100 kA UL 508 A
Ambient air temperature for operation
-40…302 °F (-40…150 °C)
Block Material
Phenolic block
Terminal Tightening Torque
Line lug 275 lbf.in (31.07 N.m) AWG 4...350 kcmil copper or aluminium;Load lug 275 lbf.in (31.07 N.m) AWG 4...350 kcmil copper or aluminium
wire stripping length
Line 1.06 in (26.92 mm);Load 1.06 in (26.92 mm)
Height
5.5 in (139.70 mm)
Width
8.54 in (216.92 mm)
Depth
3.13 in (79.50 mm)
End Barrier
9080LB53
Net Weight
3.09 lb(US) (1.40 kg)
Certifications
CE;CSA file 70361 class 6228 01;UL recognized E60616 CCN XCFR2
Category
21711-9080 LB
Discount Schedule
CP1
GTIN
785901097532
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.50 in (8.89 cm)
Package 1 Width
5.90 in (14.986 cm)
Package 1 Length
8.90 in (22.606 cm)
Package 1 Weight
3.09 lb(US) (1.402 kg)
Unit Type of Package 2
CAR
Number of Units in Package 2
6
Package 2 Height
12.50 in (31.75 cm)
Package 2 Width
9.80 in (24.892 cm)
Package 2 Length
13.30 in (33.782 cm)
Package 2 Weight
19.08 lb(US) (8.655 kg)
Warranty
18 months
