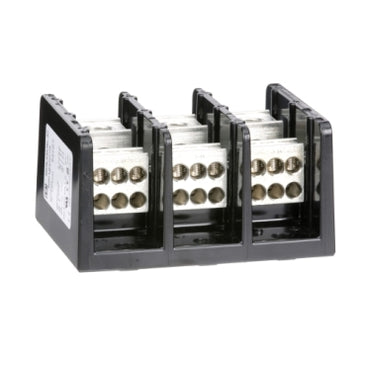

Power Distribution Block, 3 pole, 1 line, 6 load, 335 A 600 V CU / 270 A 600 V AL

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 400 kcmil copper or aluminum wire. Each load side lug is rated to accept one #14 to #2 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 335 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Range
9080LB
Product
Power Distribution Block
Current Rating
335 A copper;270 A aluminium
Short Circuit Current Rating
65 kA
Voltage Rating
600 V AC/DC
Mounting Type
Surface mount
number of poles
3
Terminals per Pole
1 line;6 load
Wire Size
Line 1;AWG 6...400 kcmil;copper or aluminium;Load 6;AWG 14...AWG 2;copper or aluminium
Electrical Connection
Tin plated aluminium lugs
SCCR
65 kA UL 508 A
Ambient air temperature for operation
-40…302 °F (-40…150 °C)
Block Material
Phenolic block
Terminal Tightening Torque
Load lug 45 lbf.in (5.08 N.m) AWG 6...AWG 4 copper or aluminium;Load lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium;Load lug 35 lbf.in (3.95 N.m) AWG 14 copper;Load lug 50 lbf.in (5.65 N.m) AWG 2 copper or aluminium;Load lug 35 lbf.in (3.95 N.m) AWG 12...AWG10 copper or aluminium;Line lug 375 lbf.in (42.37 N.m) AWG 6...400 kcmil copper or aluminium
wire stripping length
Line 1.06 in (26.92 mm);Load 0.56 in (14.22 mm) top;Load 1 in (25.40 mm) bottom
Height
4.75 in (120.65 mm)
Width
6.03 in (153.16 mm)
Depth
2.91 in (73.91 mm)
End Barrier
9080LB33
Net Weight
1.57 lb(US) (0.71 kg)
Certifications
CSA file 70361 class 6228 01;CE;UL recognized E60616 CCN XCFR2
Category
21711-9080 LB
Discount Schedule
CP1
GTIN
785901097471
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.00 in (7.62 cm)
Package 1 Width
4.40 in (11.176 cm)
Package 1 Length
5.30 in (13.462 cm)
Package 1 Weight
25.12 oz (712.14 g)
Unit Type of Package 2
CAR
Number of Units in Package 2
16
Package 2 Height
10.90 in (27.686 cm)
Package 2 Width
9.50 in (24.13 cm)
Package 2 Length
13.30 in (33.782 cm)
Package 2 Weight
26.34 lb(US) (11.948 kg)
Warranty
18 months
