Documents: 9070T500D23

Datasheet More Info

9070T500D23 | Industrial Control Transformer, 500VA, Multiple Voltages, 1-Phase, Screw Clamp Terminals | Square D by Schneider Electric

Brand: Square DSKU: 9070T500D23

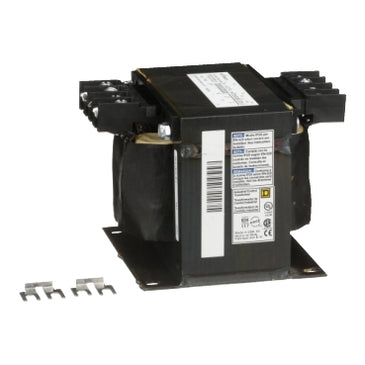

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9070T500D23

Jump to: Overview & Specifications Reviews

Overview Details for 9070T500D23

Industrial Control Transformer, 500VA, Multiple Voltages, 1-Phase, Screw Clamp Terminals

Industrial Control Transformer

Rated Power in VA: 500VA
Primary Voltage: 120 x 240V
Number of Phases: 1-Phase
Electrical Connection: Screw Clamp Terminals

Specifications

Product Type: Industrial Control Transformer
Power Rating: 500 VA
Type: T
Number of Phases: 1 phase
Power Rating: 500 VA UL;500 VA CSA;500 VA NOM;300 VA
Temperature Rise: 115 °C
Electrical Connection: Screw clamp terminals
Height: 3.84 in (97.54 mm)
Width: 4.5 in (114.30 mm)
Depth: 5.49 in (139.45 mm)
Material: Copper winding
Fingersafe Cover Compatibility: FSC2
Certifications: UL listed file E61239;CSA file LR37055 guide 184-N-90
Enclosure Type: Not rated (open device)
Insulation Temperature: 356 °F (180 °C)
Category: 16206-9070 T (NOT TF) MTO
Discount Schedule: CP8
GTIN: 785901907152
Number of Units in Package 1: 1
Package 1 Weight: 11.90 lb(US) (5.398 kg)
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Package 1 Height: 6.50 in (16.51 cm)
Package 1 Width: 6.80 in (17.272 cm)
Package 1 Length: 7.80 in (19.812 cm)
Warranty: 10 Years
