9070T100D13 | Industrial Control Transformer, 100VA, Multiple Voltages, 1-Phase, Screw Clamp Terminals | Square D by Schneider Electric

Brand: Square DSKU: 9070T100D13

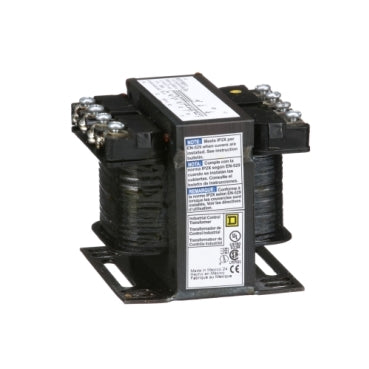

Square D | 9070T100D13
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9070T100D13
Jump to: Overview & Specifications Reviews

Overview Details for 9070T100D13

Industrial Control Transformer, 100VA, Multiple Voltages, 1-Phase, Screw Clamp Terminals

Industrial Control Transformer
  • Rated Power in VA: 100VA
  • Number of Phases: 1-Phase
  • Electrical Connection: Screw Clamp Terminals
  • Degree of Protection: Open
Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. This industrial control transformer has a power rating of 100VA and is 1 phase. This transformer has a 120V primary voltage and 12/24V secondary voltage. This transformer complies to UL, CSA, CE standards. There is an 18 month warranty on this product.

Specifications

Product Type
Industrial Control Transformer
Power Rating
100 VA
Type
T
Number of Phases
1 phase
Power Rating
100 VA
Temperature Rise
55 °C
Electrical Connection
Screw clamp terminals
Height
2.89 in (73.41 mm)
Width
3.38 in (85.85 mm)
Depth
3.34 in (84.84 mm)
Material
Copper winding
Fingersafe Cover Compatibility
FSC1
Certifications
CSA file LR37055 guide 184-N-90;UL listed file E61239
Enclosure Type
Not rated (open device)
Insulation Temperature
221 °F (105 °C)
Category
16200-9070 T (NOT TF) 50-200VA
Discount Schedule
CP8
GTIN
785901905561
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.70 in (9.398 cm)
Package 1 Width
4.10 in (10.414 cm)
Package 1 Length
4.30 in (10.922 cm)
Package 1 Weight
3.82 lb(US) (1.733 kg)
Unit Type of Package 2
PAL
Number of Units in Package 2
450
Package 2 Height
40.00 in (101.6 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
48.00 in (121.92 cm)
Package 2 Weight
1721.55 lb(US) (780.88 kg)
Warranty
10 Years
