9070T100D23 | Industrial control transformer, Type T, 1 phase, 100VA, 120x240V primary, 24V secondary, 50/60Hz | Square D by Schneider Electric

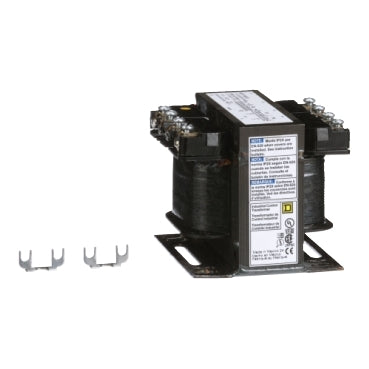

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9070T100D23
Overview
Details for 9070T100D23
Industrial control transformer, Type T, 1 phase, 100VA, 120x240V primary, 24V secondary, 50/60Hz
Type T is our most popular and complete line of control transformers. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. The Type T control transformer is the best choice if size and cost are of concern. Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. Schneider Electric offers Type T and Type EO transformers in the MultiTap version. This Industrial Control Transformer has a power rating of 100VA and is 1 phase. This transformer has a 120 x 240V primary voltage and 24V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 2.89 in (H), 3.38 in (W), 3.34 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC1. This product has a compatability for FSC1. This product comes with an 18 month warranty.Specifications
- Product Type
- Industrial Control Transformer
- Power Rating
- 100 VA
- Type
- T
- Number of Phases
- 1 phase
- Power Rating
- 100 VA
- Temperature Rise
- 55 °C
- Electrical Connection
- Screw clamp terminals
- Height
- 2.89 in (73.41 mm)
- Width
- 3.38 in (85.85 mm)
- Depth
- 3.34 in (84.84 mm)
- Material
- Copper winding
- Fingersafe Cover Compatibility
- FSC1
- Certifications
- CSA file LR37055 guide 184-N-90;UL listed file E61239
- Enclosure Type
- Not rated (open device)
- Insulation Temperature
- 221 °F (105 °C)
- Category
- 16200-9070 T (NOT TF) 50-200VA
- Discount Schedule
- CP8
- GTIN
- 785901905066
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.95 in (7.493 cm)
- Package 1 Width
- 3.35 in (8.509 cm)
- Package 1 Length
- 3.38 in (8.585 cm)
- Package 1 Weight
- 3.85 lb(US) (1.746 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 450
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 1733.00 lb(US) (786.075 kg)
- Warranty
- 10 Years
