9050JCK70V14 | TIMER RELAY 240VAC 10AMP +OPT | Square D by Schneider Electric

Brand: Square DSKU: 9050JCK70V14

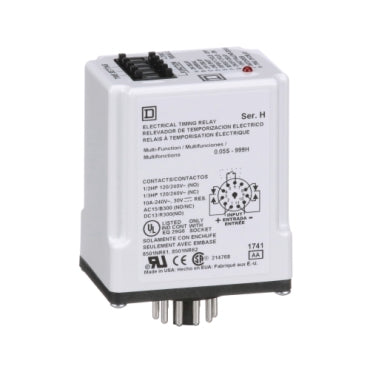

Square D | 9050JCK70V14
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9050JCK70V14

Overview Details for 9050JCK70V14

TIMER RELAY 240VAC 10AMP +OPT

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer can be programed to have an on delay, off delay, interval, one shot, repeat cycle off, repeat cycle on, on/off delay, one shot falling edge, watchdog or trigger on delay timing mode. The timing range of 0.5 seconds to 999 hours is easily adjustable with thumb wheels on the top of the timer. This plug in timer plugs into an 8501NR61 or 8501NR62 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 24 VAC/VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.

Specifications

product range
9050JCK
product type
Timer
timing mode
Watchdog;On-delay and off-delay;One shot falling edge;One shot;Trigger on-delay;Off-delay;On-delay;Interval;Repeat cycle
timing range
0.1...99.9 h;0.05...9.99 s;0.1...99.9 min;1...999 h;1...999 s;1...999 min
supply voltage
24 V AC
power consumption
3 VA
current rating
10 A
switch function
DPDT
contact composition
2 NO + 2 NC
contact material
Silver nickel
maximum switching voltage
240 V AC
mounting type
Socket
number of pins
11
shape of pins
Tubular
for use with
8501NR62;8501NR61
certifications
UL Recognized;CE;UL Listed
ambient temperature range - operational
-18…150 °F (-28…66 °C)
Height
2.36 in (60 mm)
Width
1.73 in (44 mm)
Depth
3.58 in (91 mm)
Category
21652-9050 JCK60;70 PROGRAMMABLE TIMERS
Discount Schedule
CP2
GTIN
785901053897
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.90 in (4.826 cm)
Package 1 Width
2.50 in (6.35 cm)
Package 1 Length
4.30 in (10.922 cm)
Package 1 Weight
4.48 oz (127.006 g)
Warranty
18 months
