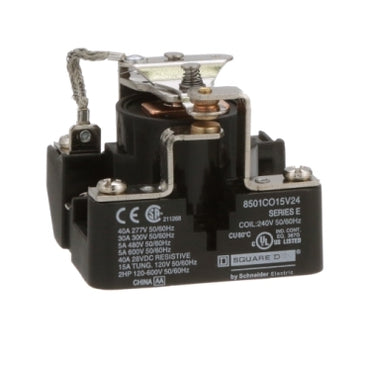

8501CO15V24 | RELAY 600VAC 5AMP TYPE C +OPTIONS | Square D by Schneider Electric

Brand: Square DSKU: 8501CO15V24

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501CO15V24

Jump to: Overview & Specifications Reviews

Overview Details for 8501CO15V24

RELAY 600VAC 5AMP TYPE C +OPTIONS

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a SPDT contact configuration with one normally open and one normally closed contact. A variety of coil voltages are available. This relay has a 240 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.

Specifications

product range: Power Relay 8501C
product type: Power relay
short name: type C
[In] rated line current: 30 A
device application: Suited for controlling small single phase motors and other light loads
switch function: SPDT
contact composition: 1 NO/1 NC
[Uc] control circuit voltage: 240 V AC 50/60 Hz
horsepower rating: 2.0 hp
maximum switching voltage: 600 V AC
class number: 8501
phase: 1 phase
terminal connects: Screw clamp terminal
wire range: AWG 10 copper
terminal tightening torque: 11…15 lbf.in (1.24…1.69 N.m)
coil burden: 10 VA
mounting: Panel mounting
ambient temperature range - operational: -22…122 °F (-30…50 °C)
product certifications: UL listed file E78351 CCN NLDX;CSA;CE
height: 2.43 in (61.72 mm)
width: 2.5 in (63.50 mm)
depth: 2.18 in (55.37 mm)
Category: 21131-8501 C
Discount Schedule: CP2
GTIN: 785901052289
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.20 in (5.588 cm)
Package 1 Width: 2.50 in (6.35 cm)
Package 1 Length: 2.50 in (6.35 cm)
Package 1 Weight: 8.32 oz (235.868 g)
Warranty: 18 months
