2510KW1A | Single Unit Manual Switch, 30A, NEMA 4, 2-Pole, Toggle Operated, Red Indicator, 600VAC | Square D by Schneider Electric

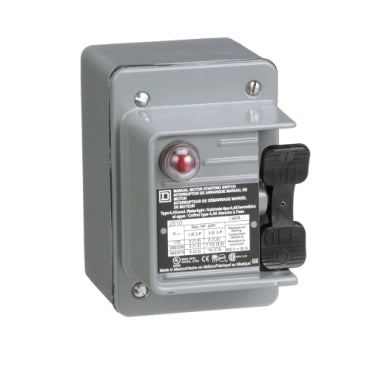

Square D | 2510KW1A
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2510KW1A

Documents and manuals

Square D 2510KW1A Documents

Overview

Details for 2510KW1A

Single Unit Manual Switch, 30A, NEMA 4, 2-Pole, Toggle Operated, Red Indicator, 600VAC

Single Unit Manual Switch
  • Line Rated Current: 30A
  • Motor Power HP: 3 HP at 460V AC; 2 HP at 230V AC, 115V AC; 3 HP at 575V AC; 1 HP at 90V DC; 2 HP at 115V DC, 1.5 HP at 230V DC
  • System Voltage: 600V AC, 230V DC
  • Poles Description: 2-Pole
  • Control Type: Toggle Switch
  • Number of Phases: 1-Phase
  • Local Signaling: Red Indicator 115V
  • Motor Starter Type: Non-Reversing
  • Electrical Connection: Screw Clamp Terminals
2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. These nonreversing manual switches are toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 20A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has a 115 VAC red pilot light indicator. This device has a NEMA 4 enclosure. The enclosure has one cable entry on the bottom that has a 0.75 NPT in the bottom. Enclosure is 4.38 inches tall, 3.00 inches wide and 4.56 inches deep. This device is UL Listed and CSA certified. This device is UL Listed and CSA certified.

Specifications

Product
Single Unit Manual Switch
Type
K
Current Rating
30 A
Cable Entry
0.75 NPT (bottom)
Horsepower Rating
2 hp 115 V AC;2 hp 230 V AC;3 hp 460 V AC;3 hp 575 V AC;1 hp 90 V DC;2 hp 115 V DC;1.5 hp 230 V DC
Maximum Voltage Rating
600 V AC;230 V DC
Number of Poles
2P
Control Unit Type
Toggle
Number of Phases
1 phase
Pilot Light
Red indicator;115 V
Starter Type
Non reversing
Electrical Connection
Screw clamp terminals
Wire Gauge
AWG 14...AWG 10 copper
Height
4.38 in (111.25 mm)
Width
3 in (76.20 mm)
Depth
4.56 in (115.82 mm)
Certifications
UL listed file E42243 CCN NLRV;CSA LR25490 class 3211 05
NEMA Enclosure Rating
NEMA 4 die cast zinc alloy standard size
Category
21102-2510;2511;2512 K
Discount Schedule
CP1
GTIN
785901077749
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.80 in (9.652 cm)
Package 1 Width
4.80 in (12.192 cm)
Package 1 Length
5.40 in (13.716 cm)
Package 1 Weight
2.97 lb(US) (1.347 kg)
Unit Type of Package 2
CAR
Number of Units in Package 2
5
Package 2 Height
8.80 in (22.352 cm)
Package 2 Width
8.20 in (20.828 cm)
Package 2 Length
14.50 in (36.83 cm)
Package 2 Weight
15.43 lb(US) (6.999 kg)
Unit Type of Package 3
PAL
Number of Units in Package 3
336
Package 3 Height
40.00 in (101.6 cm)
Package 3 Width
40.00 in (101.6 cm)
Package 3 Length
48.00 in (121.92 cm)
Package 3 Weight
1005.00 lb(US) (455.86 kg)
Warranty
18 months
