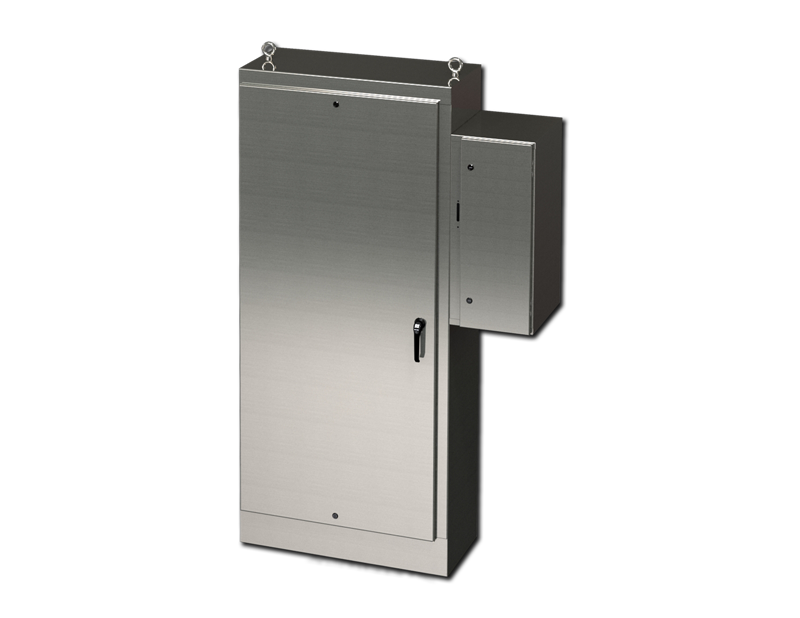

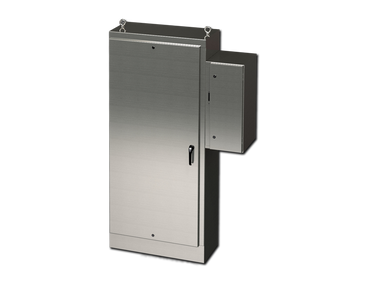

SCE-90XD4018SS6 | S.S. 1DR XD Enclosure | Saginaw

Brand: SaginawSKU: SCE-90XD4018SS6

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-90XD4018SS6

Jump to: Overview & Specifications Reviews

Overview Details for SCE-90XD4018SS6

Construction

0.104 In. stainless steel Type 304
Seams continously welded and ground smooth.
Flange trough collar around all sides of door opening.
Body stiffeners for extra rigidity.
Heavy duty lifting eyes anchor into reinforced top.
Concealed hinges.
Black zinc die cast padlocking handles.
3-point latching mechanism.
Large removable print pockets.
Pour in place oil and water resistant gasket
Removable panels are mounted on collar studs.
Defeater on master door requires a screwdriver to open.
Mechanical interlock activated by the External Disconnect prevents main door of the enclosure from being closed unless the EXD enclosure is first closed.
Ground stud on door and body.
Provisions for light kit.
Provision for 200 amp disconnect or less (Ref. D1 Cutout) - for use with Allen Bradley, Square D and Eaton (FHS) models only

Application

Designed to house the main power supply in external enclosure on the right side of main enclosure, keeping the live side of the power supply separate from the primary electrical equipment. Provides protection from dirt, dust, oil and water and can house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.

For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

#4 brushed finish on all exterior surfaces. Sub-panels are powder coated white.

Industry Standards - (IS6)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

For use with 30 to 200 Amp Flange mount disconnect Square D, Allen Bradley, and some Eaton/Cutler Hammer operating handles.
Disconnect switch (or circuit breaker) and operating mechanism are not furnished with enclosure.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-90XD4018SS6
Brand	Saginaw
Enclosure Depth (IN)	18
Enclosure Height (IN)	90
Enclosure Rating	NEMA 12
Enclosure Rating	NEMA 3R
Enclosure Rating	NEMA 4
Enclosure Rating	NEMA 4X
Enclosure Width (IN)	40
