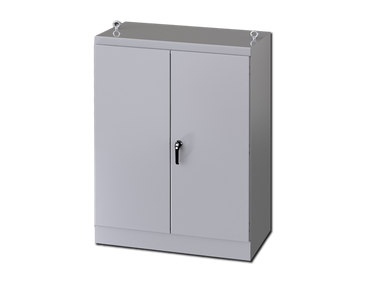

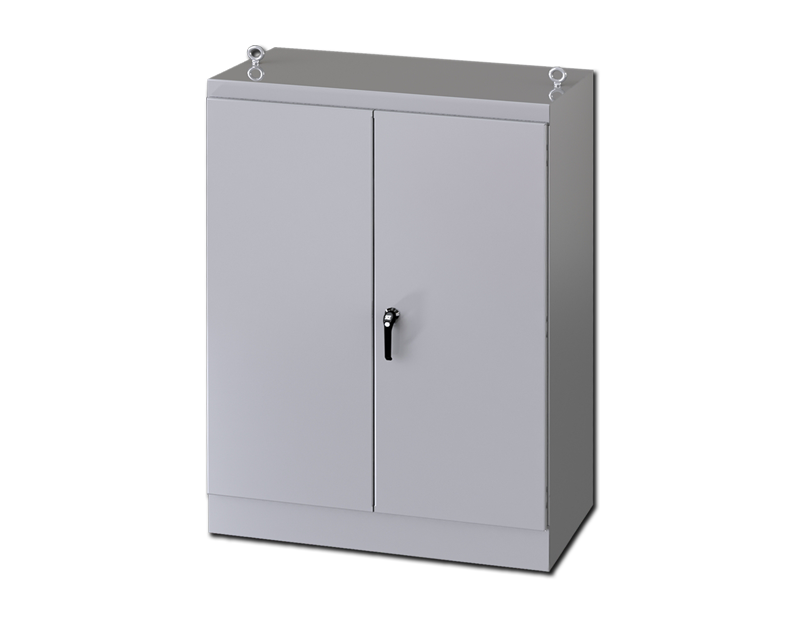

SCE-727224FSD | NEMA 3R, 12 | FSD Enclosure, 72H x 72W x 24D | Saginaw

Construction

• 0.104 In. carbon steel.
• Concealed hinges.
• Two-Door Single Access.
• Removable and interchangeable doors.
• Seams continuously welded and ground smooth.
• Lifting eyes for easy handling.
• Black zinc die cast keylocking/padlocking handle.
• 3-point latching mechanism.
• Latch rods have ramp shoes for easier door closing.
• Flange trough collar around all sides of door opening.
• Removable print pocket provided on door with 3-point latch.
• Mounting channels welded horizontally on sides of interior body at top, bottom and middle for mounting optional panels or rack mounting angles.
• Pour in place oil and water resistant gasket
• Ground stud on door.
• Provisions for light kits.
• Holes plugs provided to seal holes in bottom of enclosure.

Application

Finish

Industry Standards - (IS3)

• NEMA Type 3R, 12 and Type 13
• UL Listed Type 3R and 12
• CSA Type 3R and 12
• IEC 60529
• IP 55

Notes
