Documents: SCE-90P72F2

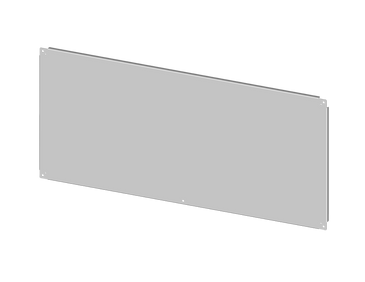

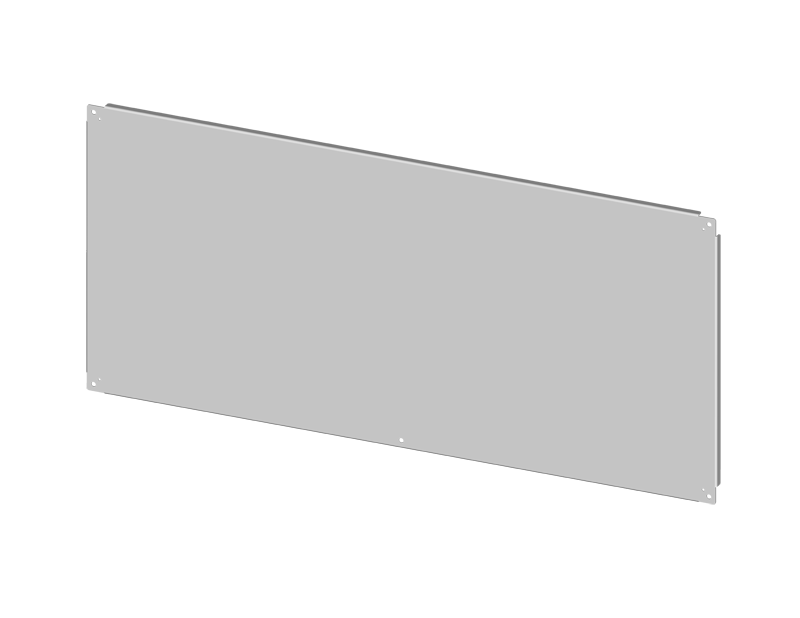

SCE-90P72F2 | NEMA N/A | Subpanel, Half, 40H x 68W x 1D | Saginaw
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-90P72F2
Overview Details for SCE-90P72F2
Construction
- 0.125 In. carbon steel.
Application
Panels for two door enclosures can be positioned anywhere along the horizontal mounting channels. Half-length panels can be located in the upper or lower portion of the enclosure. Mounting hardware is included. All panels are made of heavy gauge steel.
Finish
Powder coated white.
Industry Standards - (IS17)
- NEMA Not Applicable
- UL Not Applicable
- CSA N/A
Specifications
Item Number | SCE-90P72F2 |
Brand | Saginaw |
1 Enclosure Rating | Unrated |
Enclosure Depth (IN) | 1 |
Enclosure Height (IN) | 40 |
Enclosure Type | Subpanel |
Enclosure Width (IN) | 68 |
