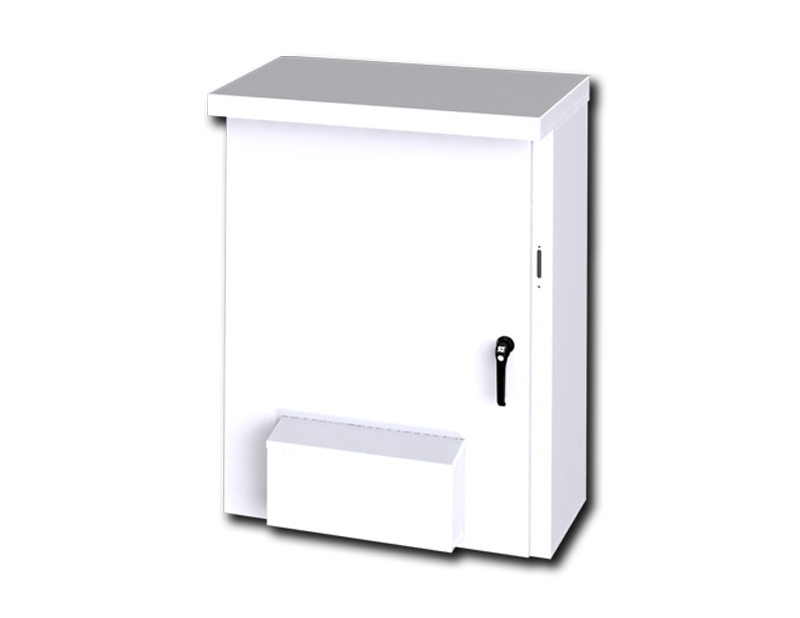

SCE-53XVR3716 | NEMA 3R | Enclosure, Vented Type 3R Disconnect, 53H x 37W x 16D | Saginaw

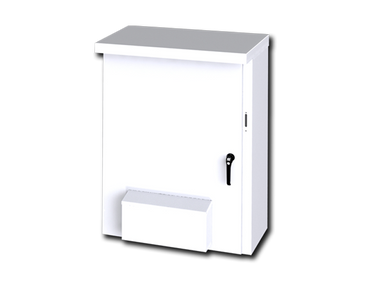

Saginaw | SCE-53XVR3716
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-53XVR3716
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Saginaw SCE-53XVR3716 Documents

FREIGHT DAMAGE POLICYCAD PackageABB Flange Mounted. Disconnects and Circuit BreakersAllen-Bradley Flange Mounted. Disconnects and Circuit BreakersBussmann Flange Mounted. Disconnects and Circuit BreakersCutler-Hammer Flange Mounted. Disconnects and Circuit BreakersGE Flange Mounted. Disconnects and Circuit BreakersGould Flange Mounted. Disconnects and Circuit BreakersMoller Flange Mounted. Disconnects and Circuit BreakersSiemens Flange Mounted. Disconnects and Circuit BreakersSquare D Flange Mounted. Disconnects and Circuit BreakersCooling FanMechanical Defeater (2018 Rev) VideoMechanical Defeater (2018 Rev)LS Electric Flange Mounted DisconnectsService Parts Wall Mount Disconnect EnclosuresSelf Tripping Defeater Hook KitDesign Considerations When Specifying Your EnclosureSub-Plate Layout & Grounding for 3/8-16Cooling Fan More Info

Overview

Details for SCE-53XVR3716

NEMA 3R | Enclosure, Vented Type 3R Disconnect, 53H x 37W x 16D

Construction

  • 0.075 In. Galvannealed Steel.
  • 3-point latching mechanism.
  • Collar studs 3/8-16 provided for mounting optional panels.
  • Doors open 180 degrees.
  • Disconnect cutout provided on flange.
  • Vented top hood with bug screen.
  • Top mounted fans.
  • Vented rain hood with filter kits in door.
  • Din Rail mounting provisions inside top for installation of thermostat and terminals.
  • Pour in place oil and water resistant gasket
  • Ground stud on door and body.
  • Mounting Holes for optional mounting straps.
  • 3/8-16 grounding kit.
  • Subpanel mounting hardware.
  • Concealed hinges.

Application

Designed to house electrical controls, drives, instruments and components used in an outdoor environment to provide a degree of protection for the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); and provide a degree of protection with respect to the harmful effects on the equipment due to the ingress of water (rain, sleet, snow). Designed to house most standard disconntects.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

White powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS7)

  • NEMA Type 3R
  • UL Listed Type 3R
  • CSA Type 3R
  • IEC 60529
  • IP 32

Notes

SCE-47XVR2514 uses included Self Tripping Defeater Hook Kit

Specifications

Item Number SCE-53XVR3716
Brand Saginaw
1 Enclosure Rating NEMA 3R
Enclosure Depth (IN) 16
Enclosure Height (IN) 53
Enclosure Type Enclosure
Enclosure Width (IN) 37
